450mm x 450mm (17.8"X17.8") D400-Electrical Cable Chamber Cover,Power Cable Manhole Cover,Telecom Manhole Cover,Fiber Optic Cable Chamber Cover

Power Manhole Cover-450x450mm，FRP/SMC Composite Manhole Cover，Non-Conductive, Excellent Insulation, Anti-Static for Enhanced Safety and Reliability!100% Sealed Structure Design Effectively Prevents Rainwater Ingress, Avoiding Signal Failures, Connector Damage, and Other Underground Equipment Issues While Reducing Maintenance Costs!

Sample: Samples Available for Quality Evaluation
Production time:
Quantity (set) 1-400 >400
Day 7-20 negotiated
Customized: Ustomizable Sizes, Patterns & Logos
Transport: Supports sea and air freight

Select and buy

CATEGORY

Product description

summary

Quick details

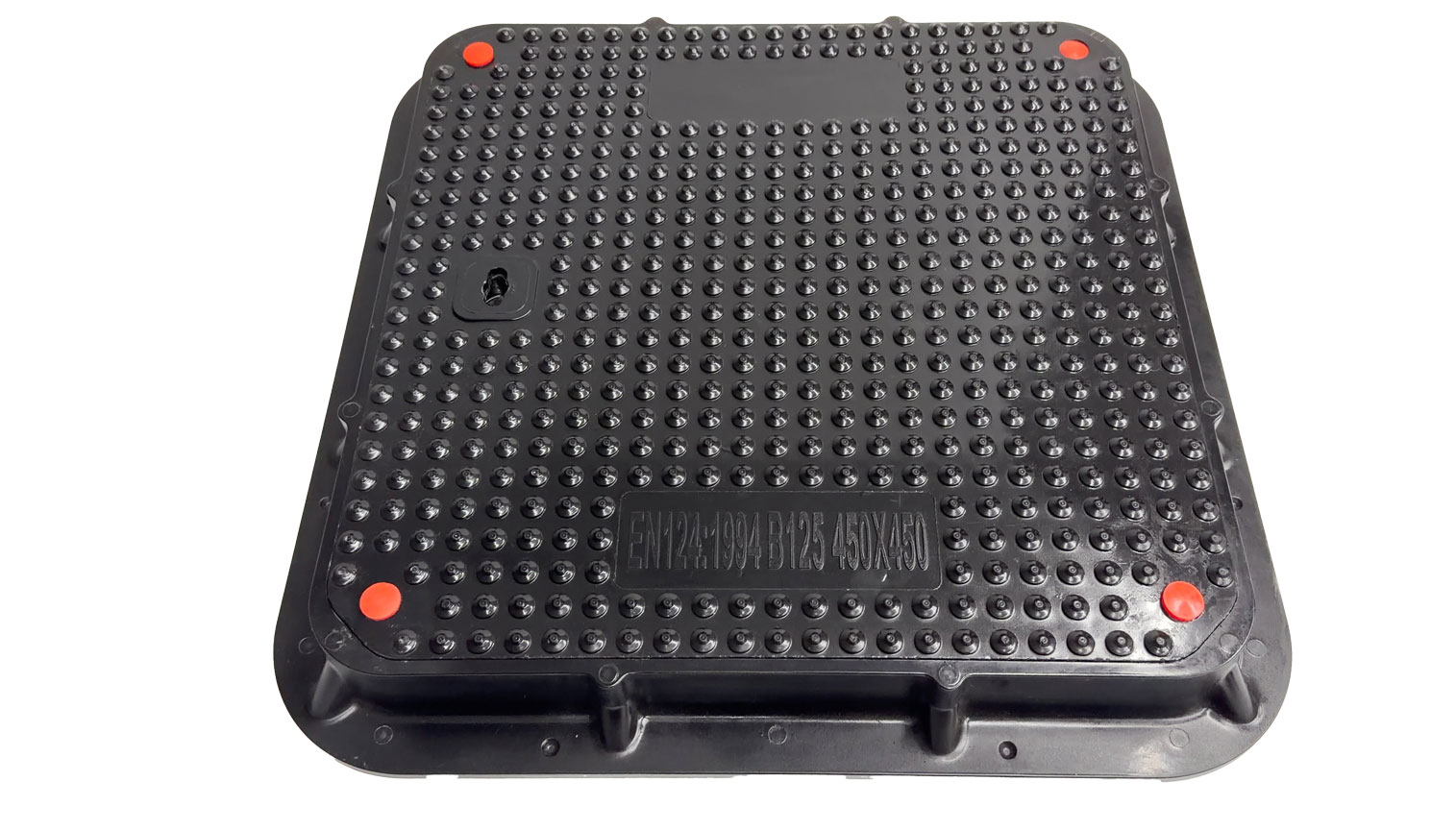

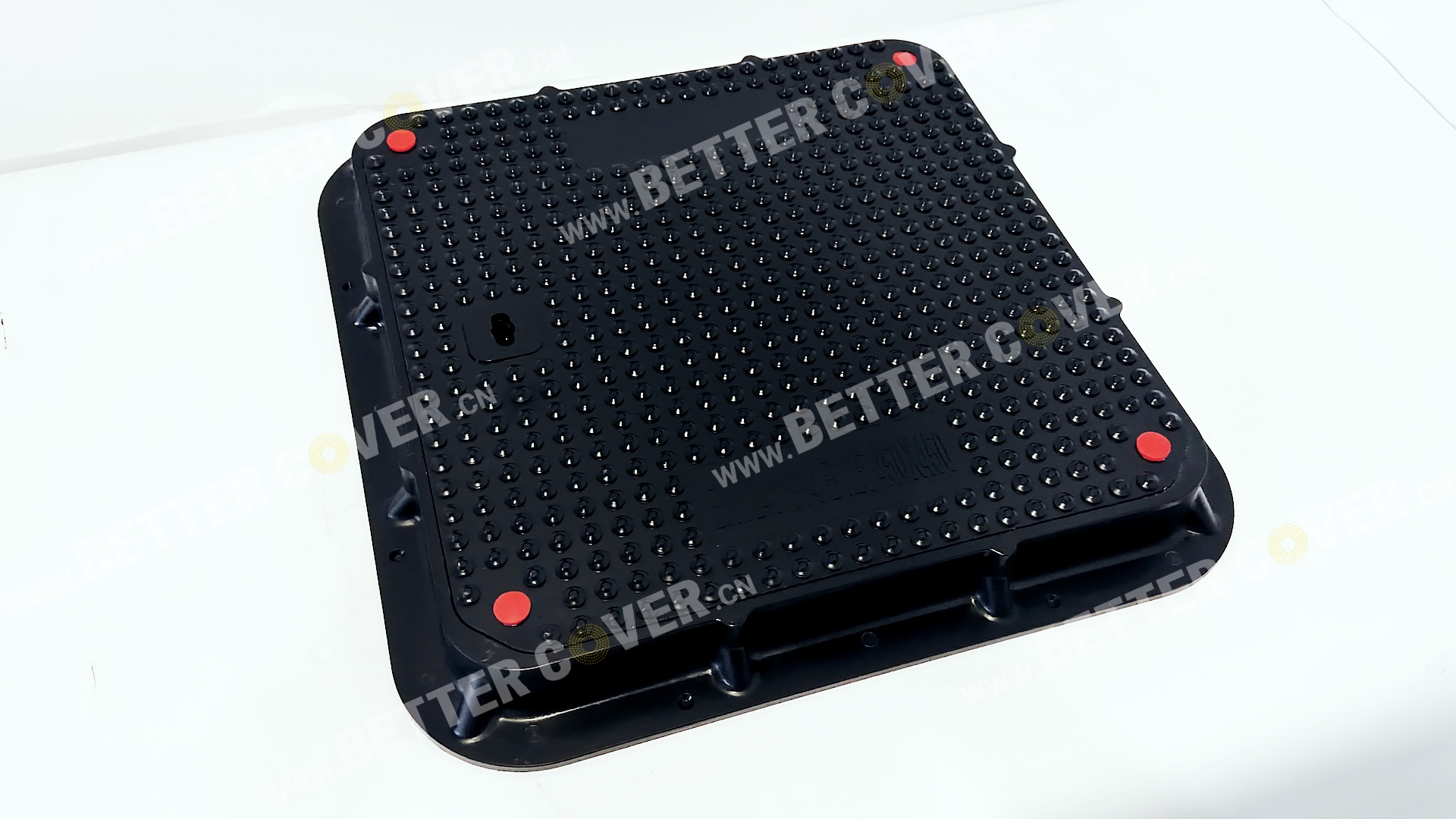

Product name: SMC FRP Composite 450X450mm (17.8"X17.8") D400 Lockable Lockable Sewer Manhole Cover And Frame
Size: 590X590X60mm(23.3"X23.3"X2.4")

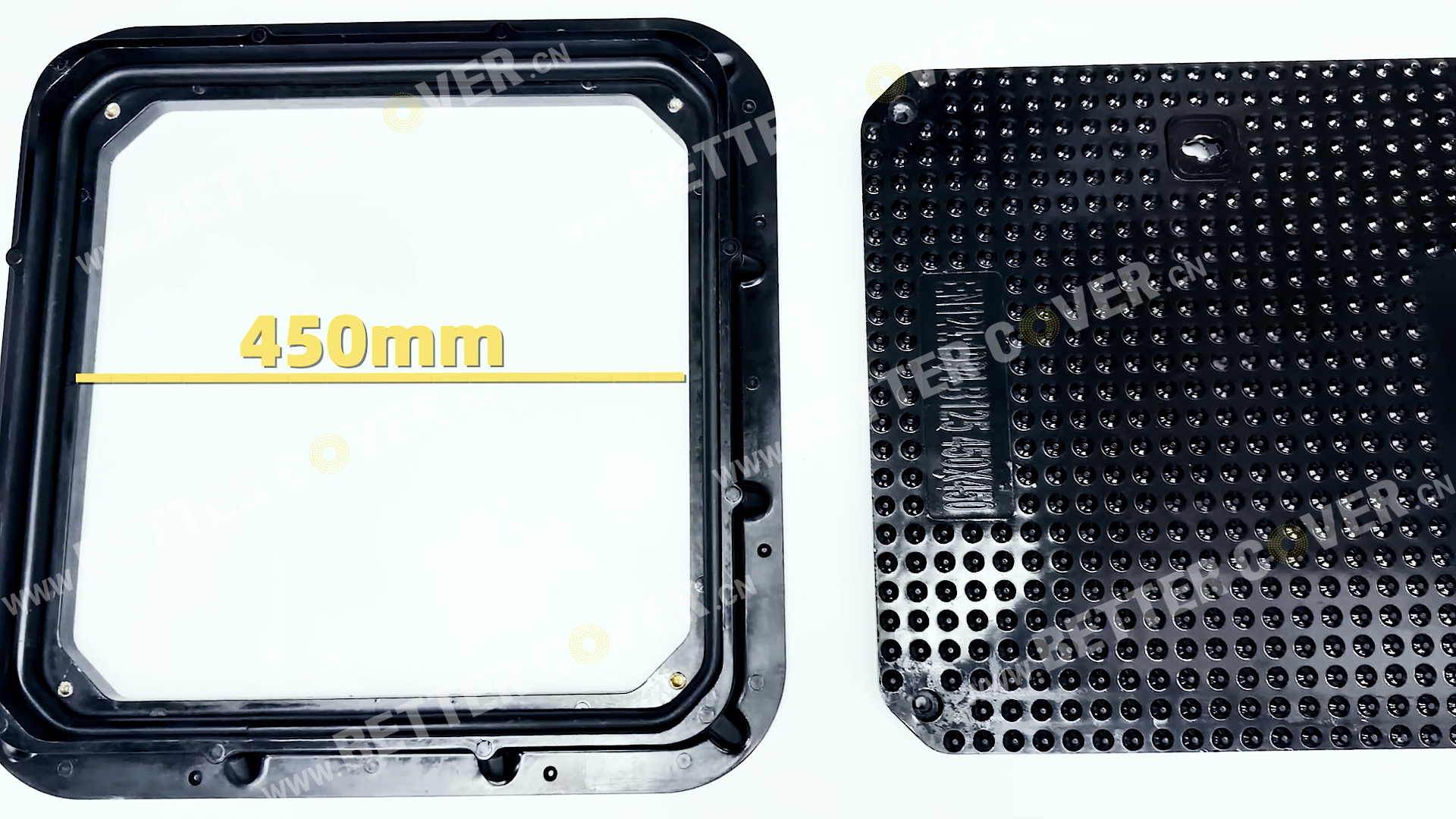

Clear open: 450X450mm(17.8"X17.8")
Application: Telecom & Fiber Optic Networks 、 Electrical & Power Infrastructure 、 Street Lighting Systems 、 Fire Protection Systems
Function: Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color

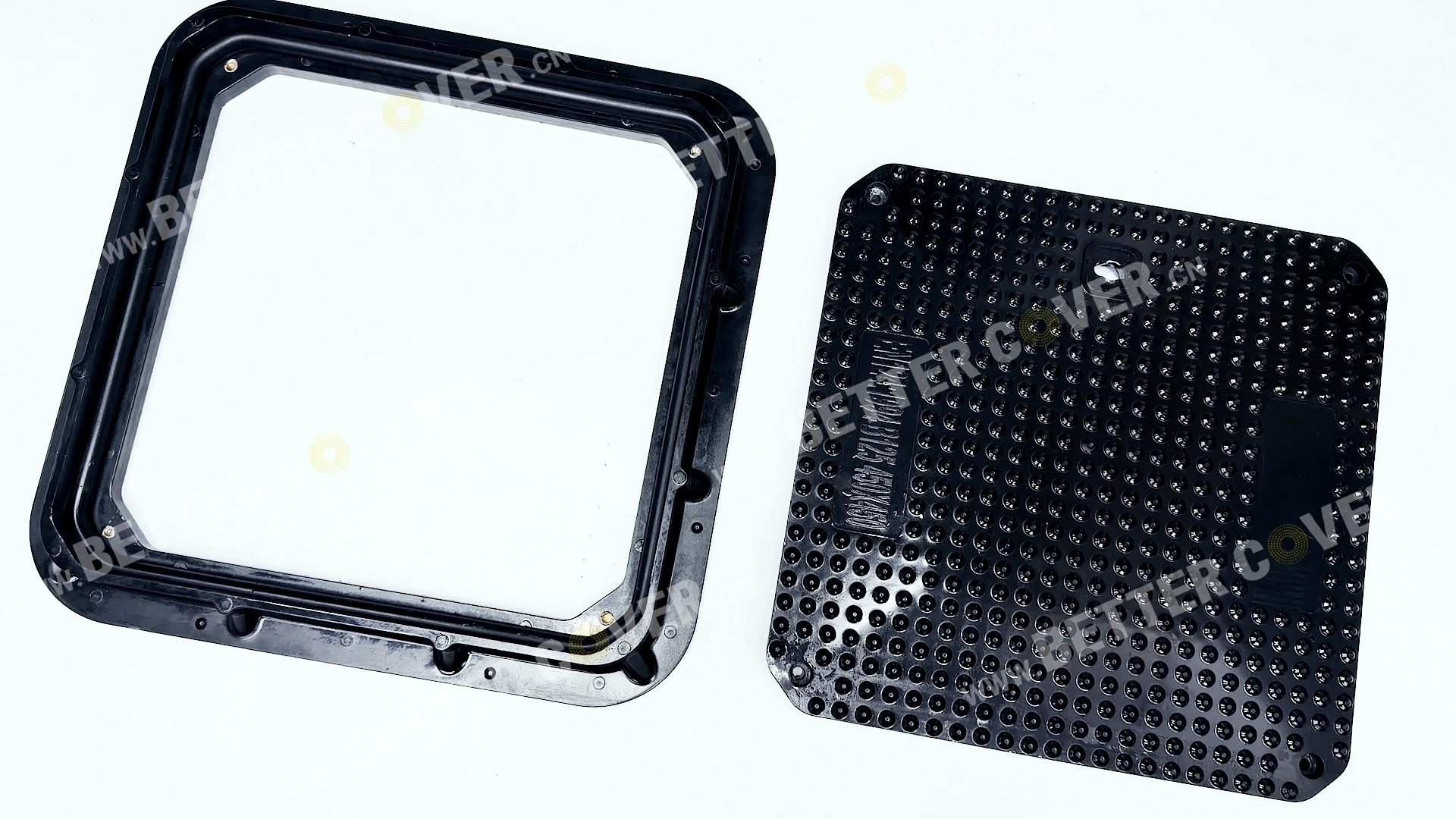

Product Structure: Manhole cover and frame, drainage handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 25Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, The aluminum sleeve of removable drainage handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃

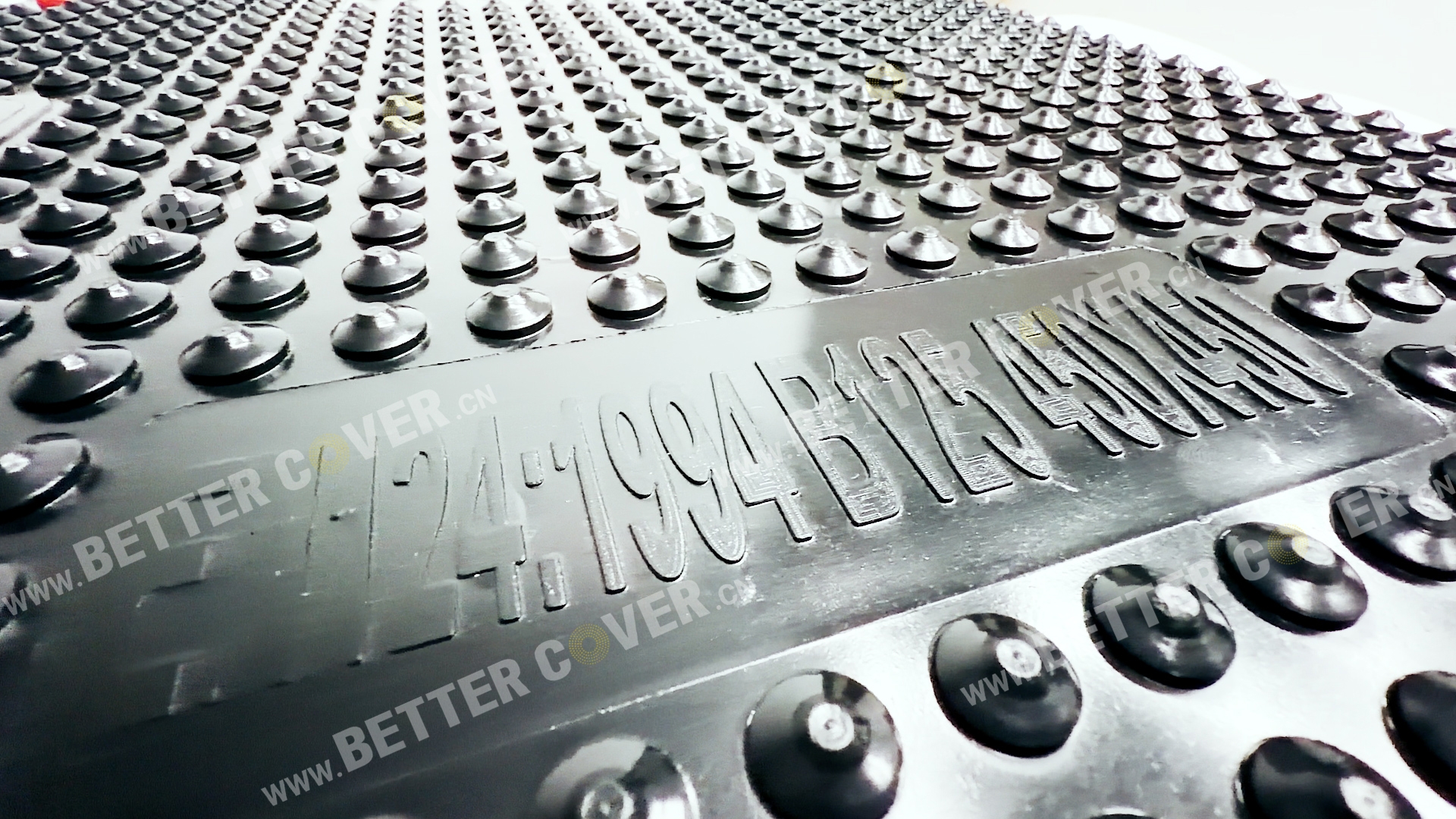

Product Standard: BS EN124:2015
Load Ratings:D400(40TON)

Product details

Function	Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

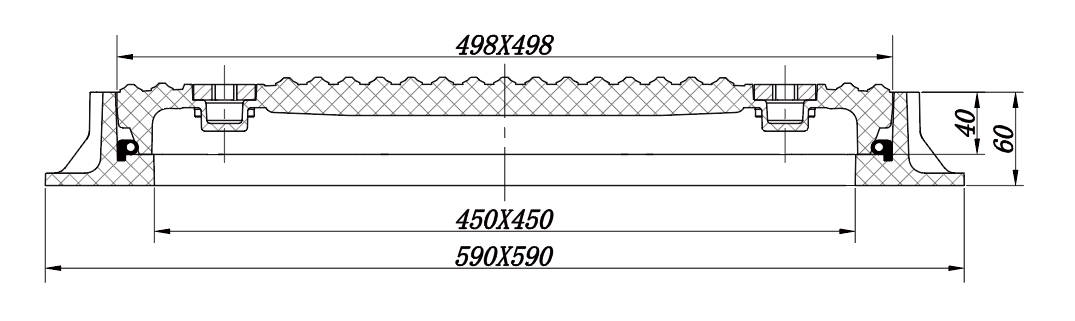

Unit: mm


Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	498X498	60	D400
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	590X590	450X450	&emsp;	29

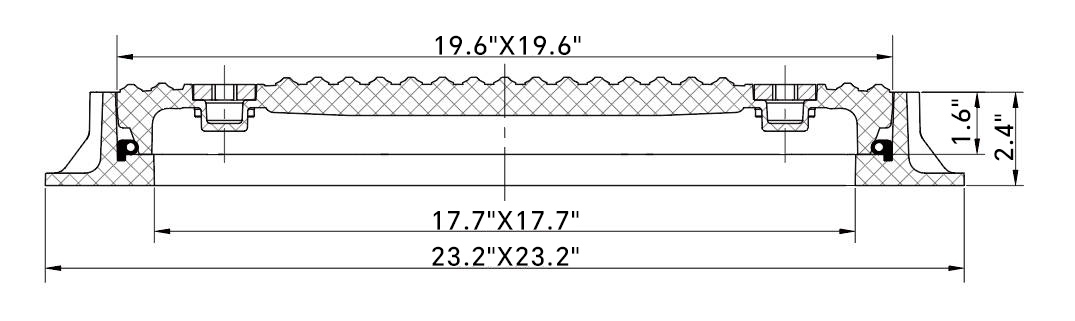

Unit: in


Product structure size (in)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	1.6"	19.6"X19.6"	2.4"	D400
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	23.2"X23.2"	17.7"X17.7"	&emsp;	29

FRP/SMC Composite Manhole Covers: Corrosion-Resistant

Rust-Free, and Long Service Life.

Non-Conductive, Excellent Insulation

Anti-Static for Enhanced Safety and Reliability!

Load Rating:

A15、B125、C250、D400

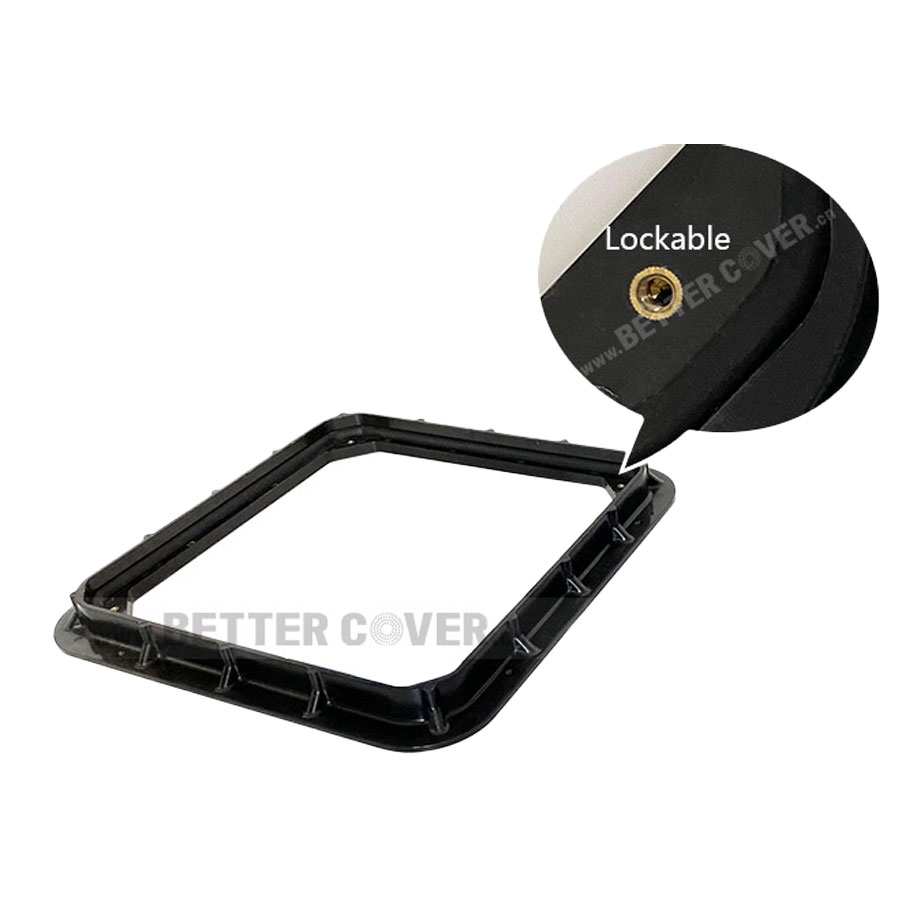

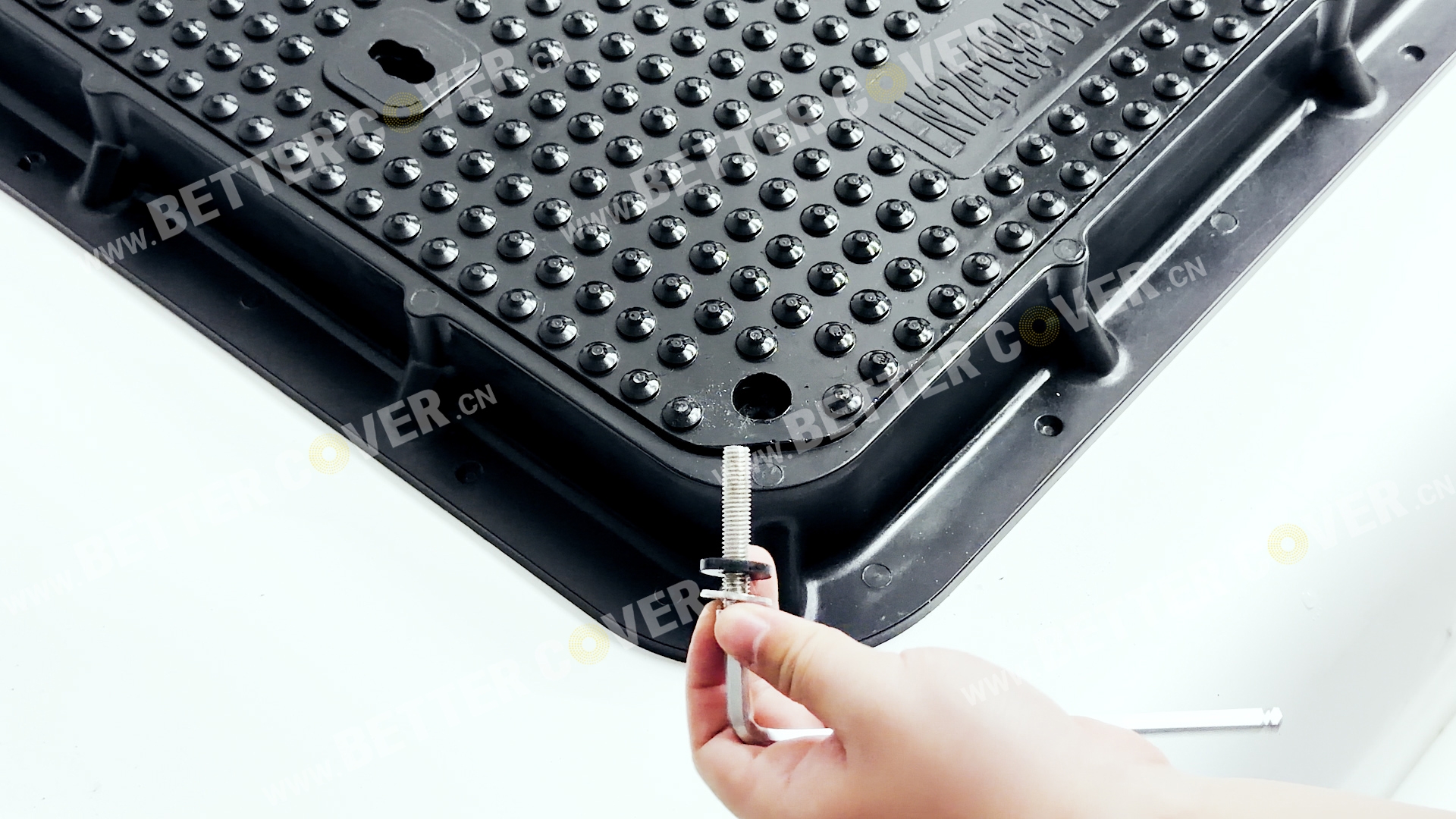

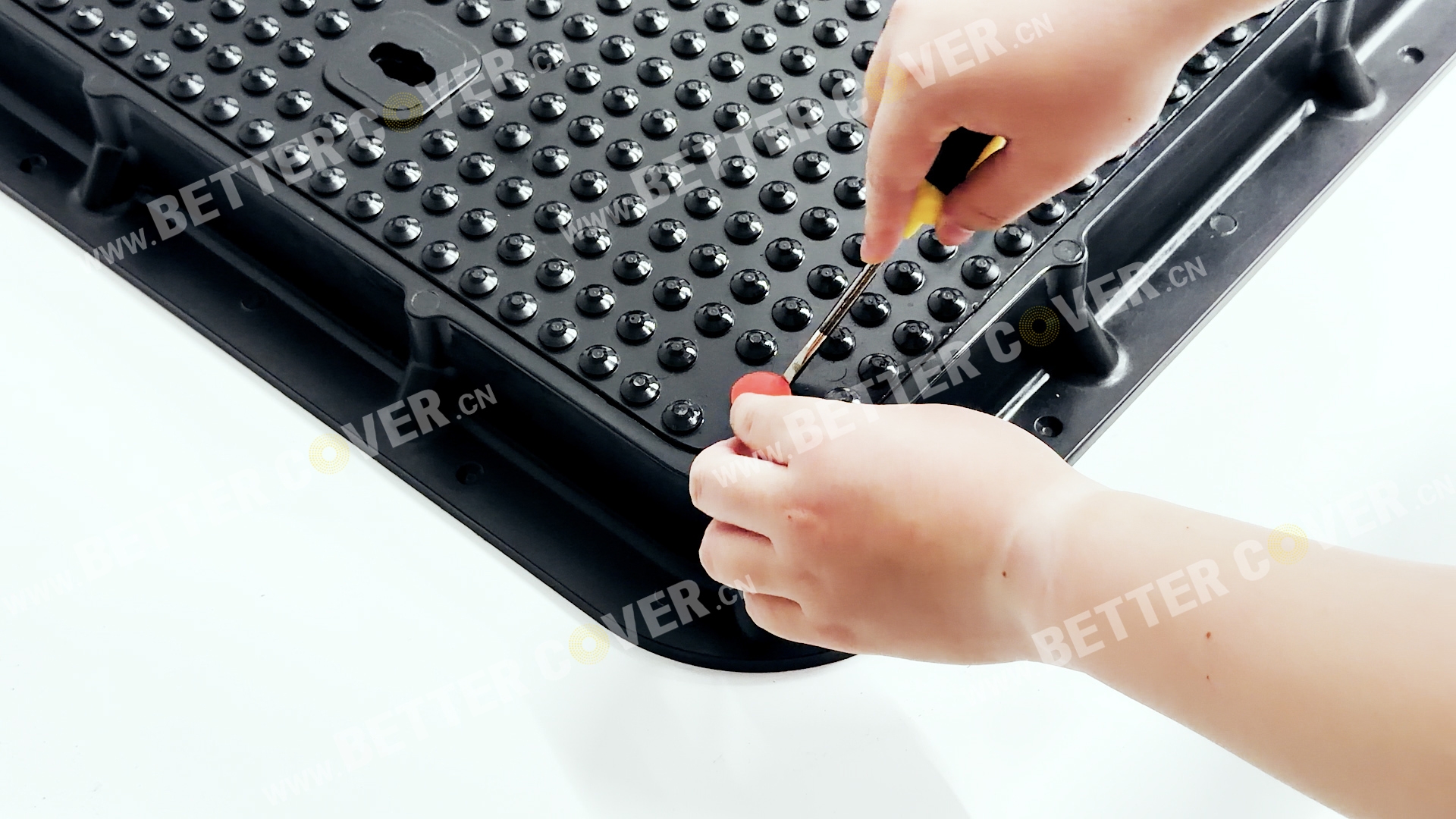

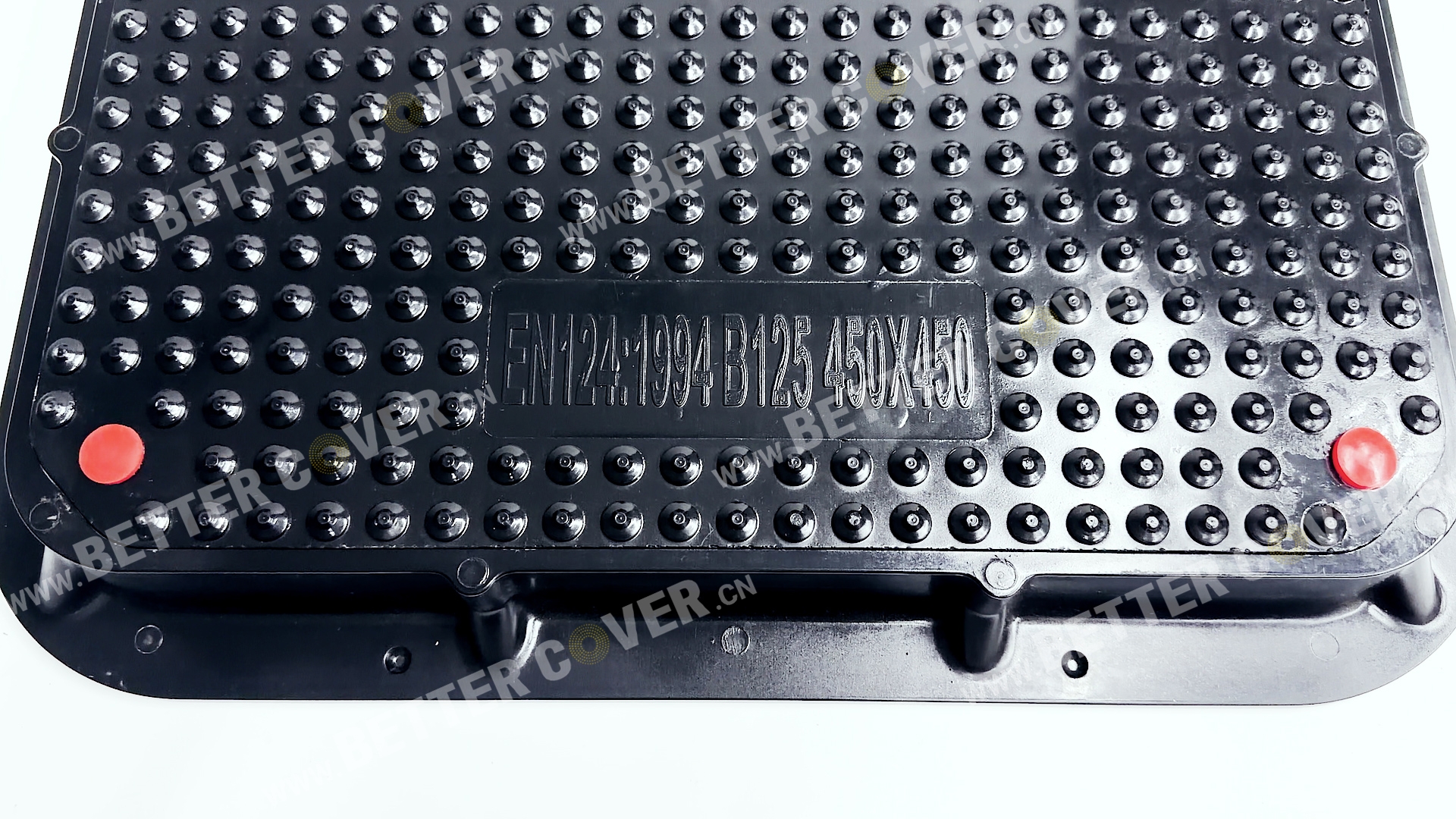

Locking Structure Design

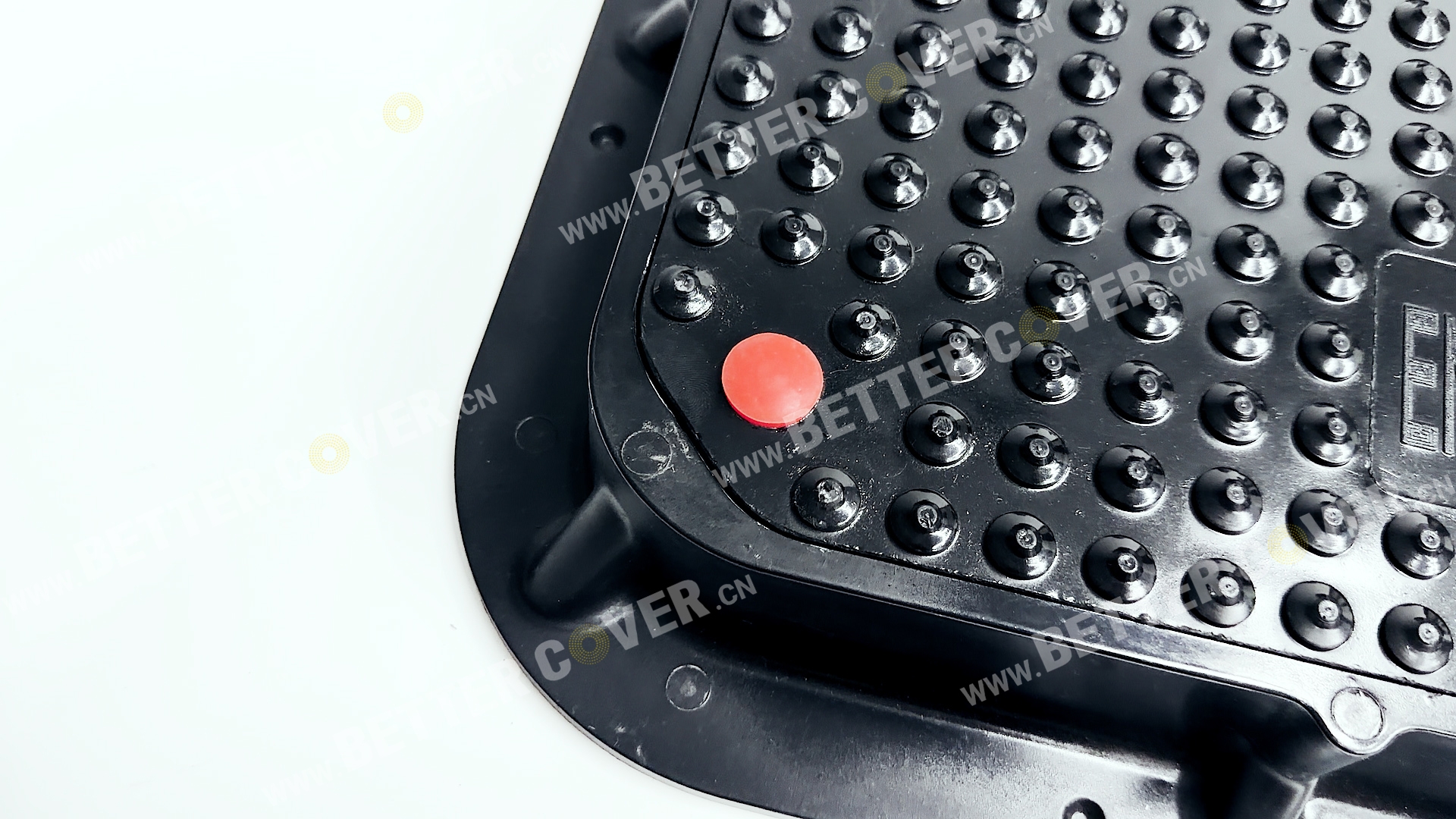

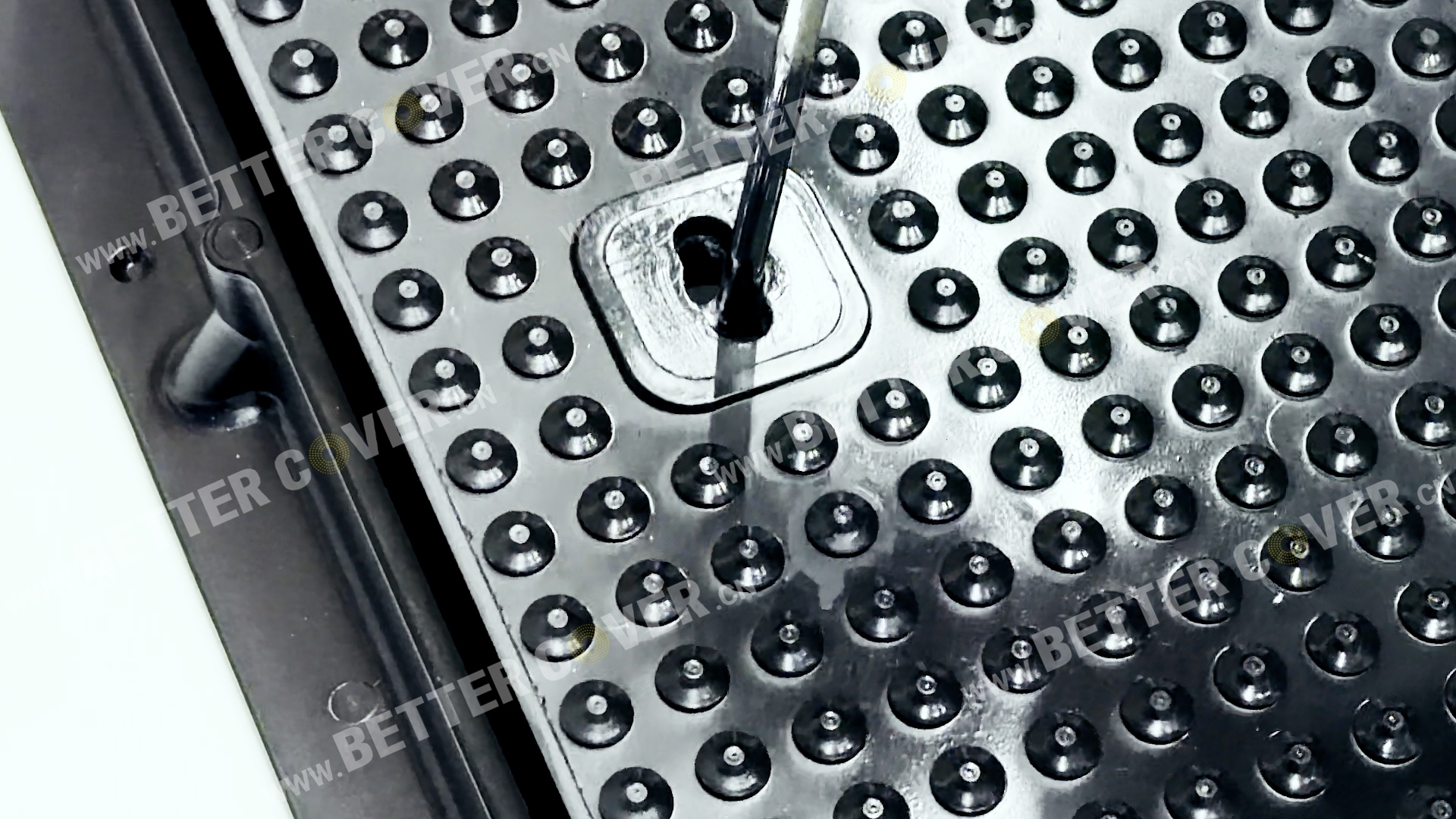

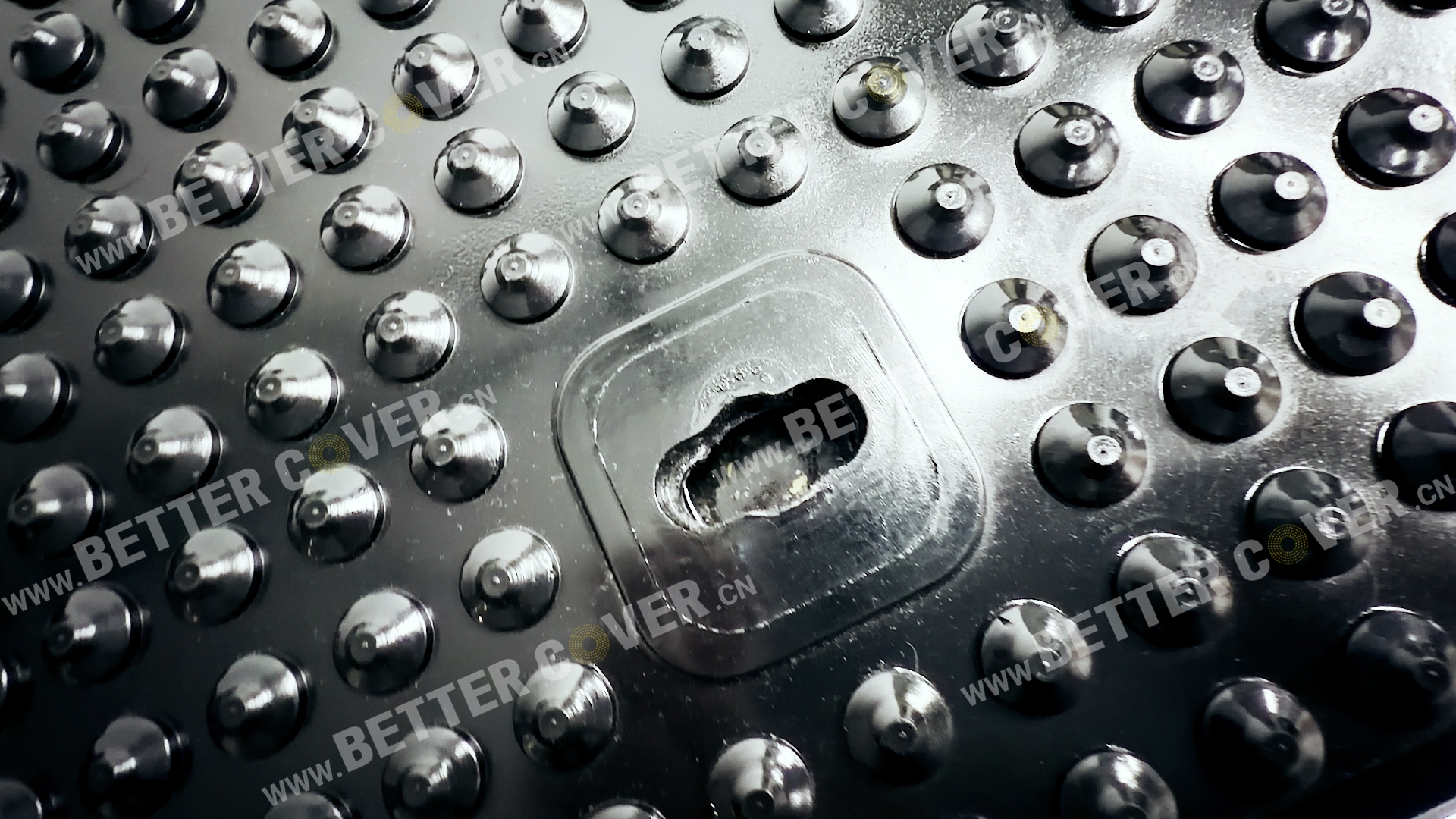

SMC Integrally Molded Lifting Holes

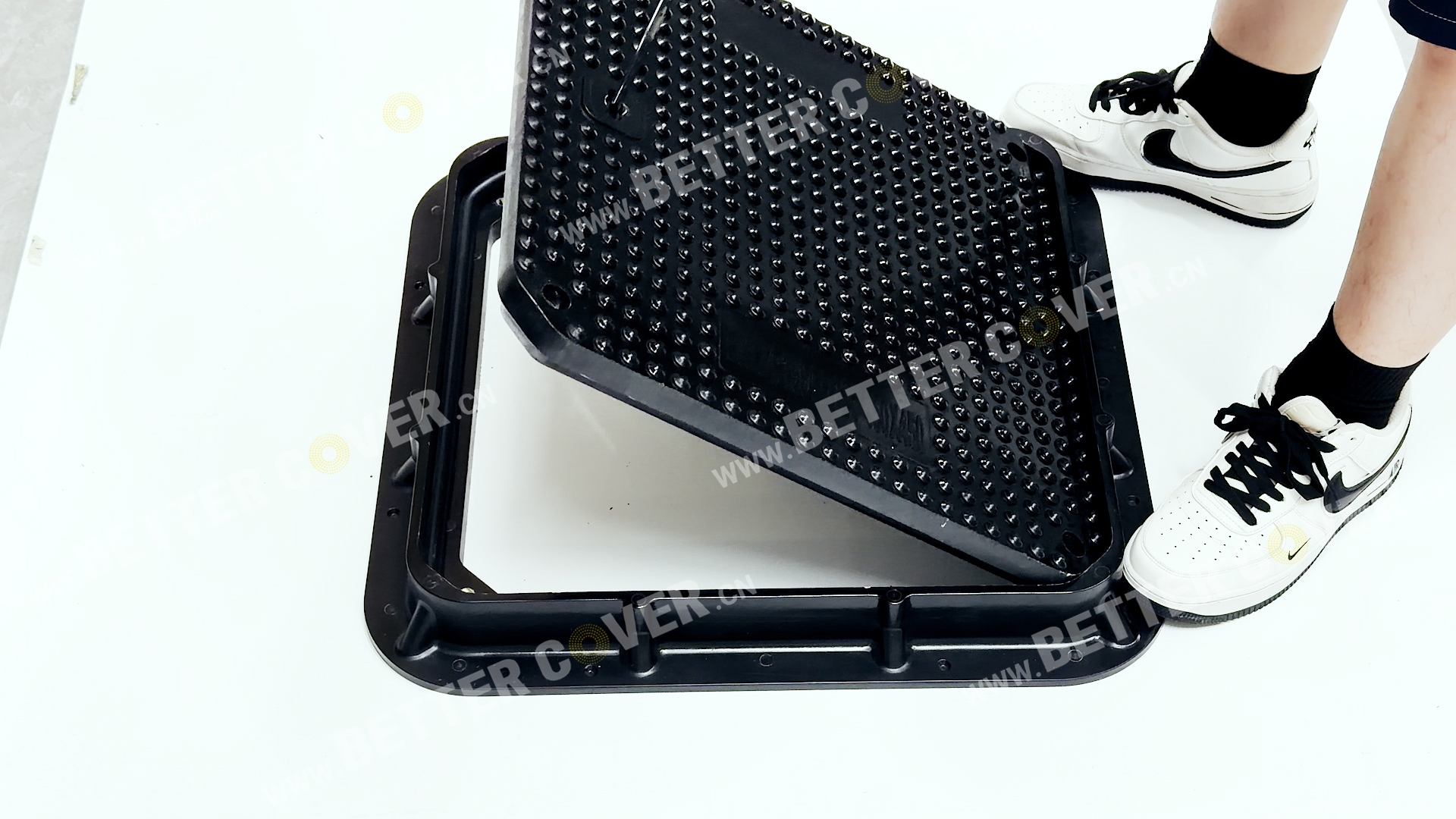

Suitable for pedestrian areas, featuring a locking structure design

to prevent cover bouncing and displacement for enhanced safety

Comes with a dedicated lifting tool

Easy and labor-saving to use

100% sealed structure stops rainwater ingress

protecting equipment and cutting maintenance costs.

●Tool

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

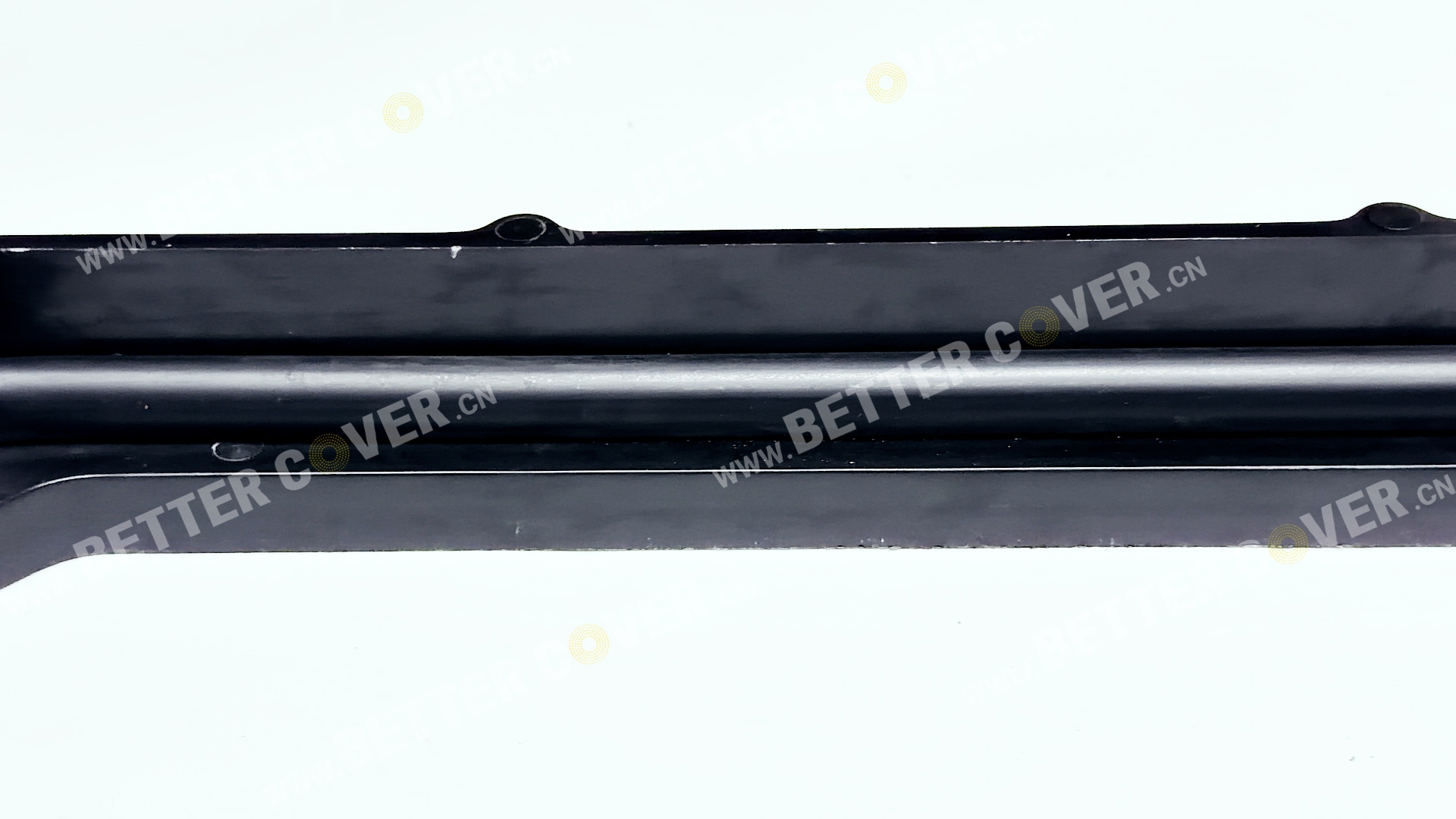

Excellent bridge structure

Factory Overview

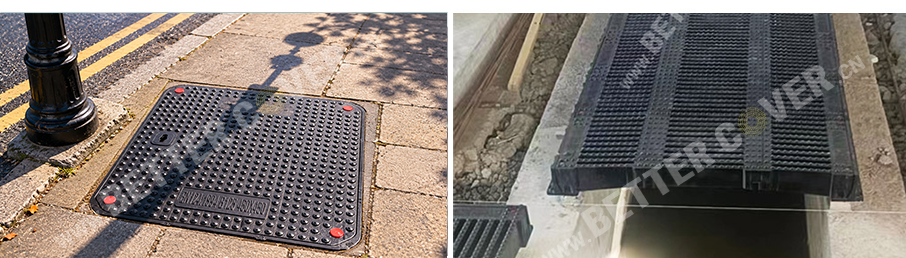

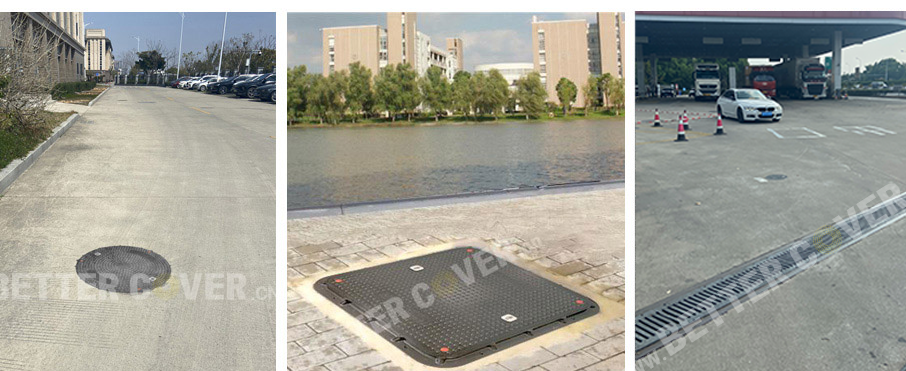

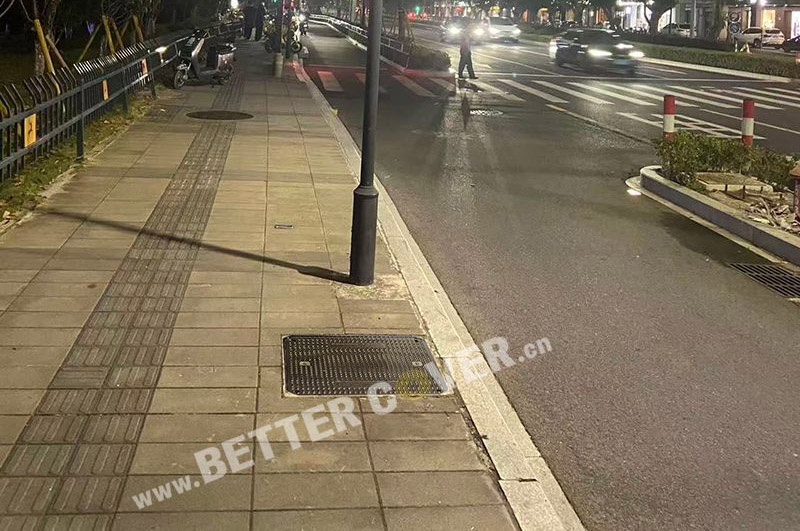

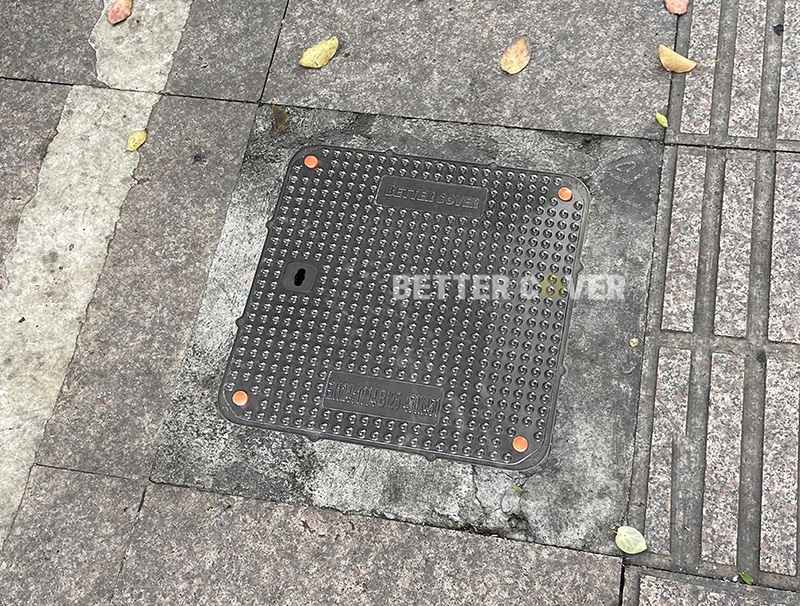

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
