Quick details

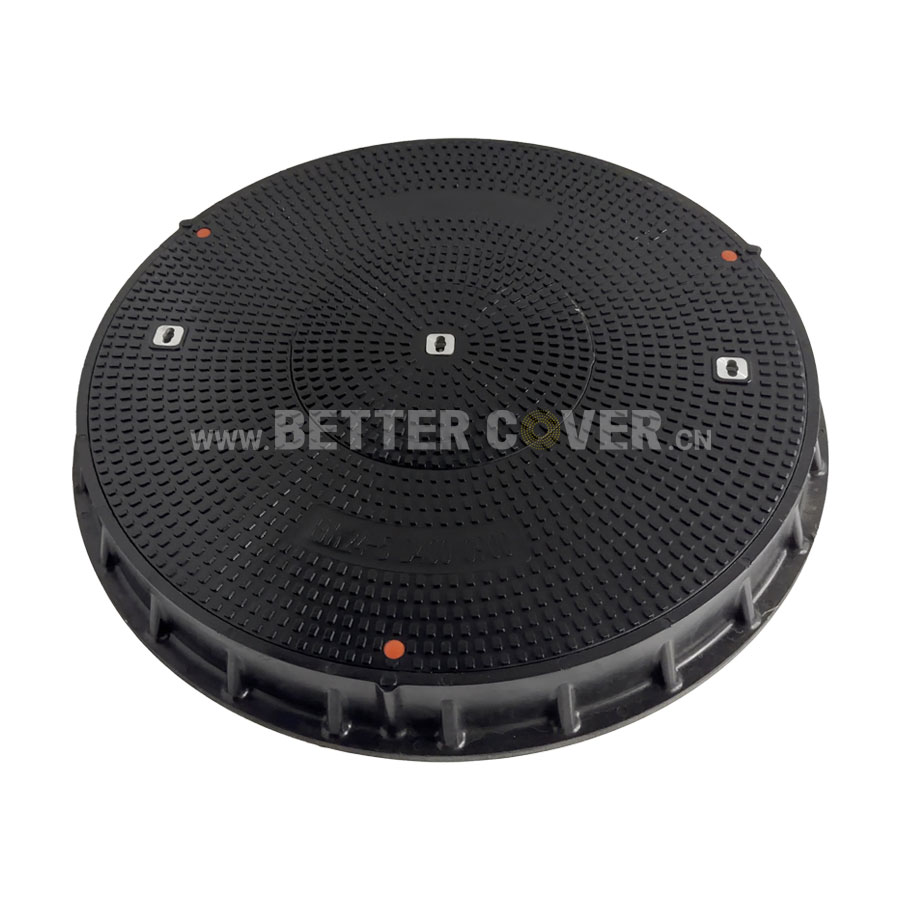

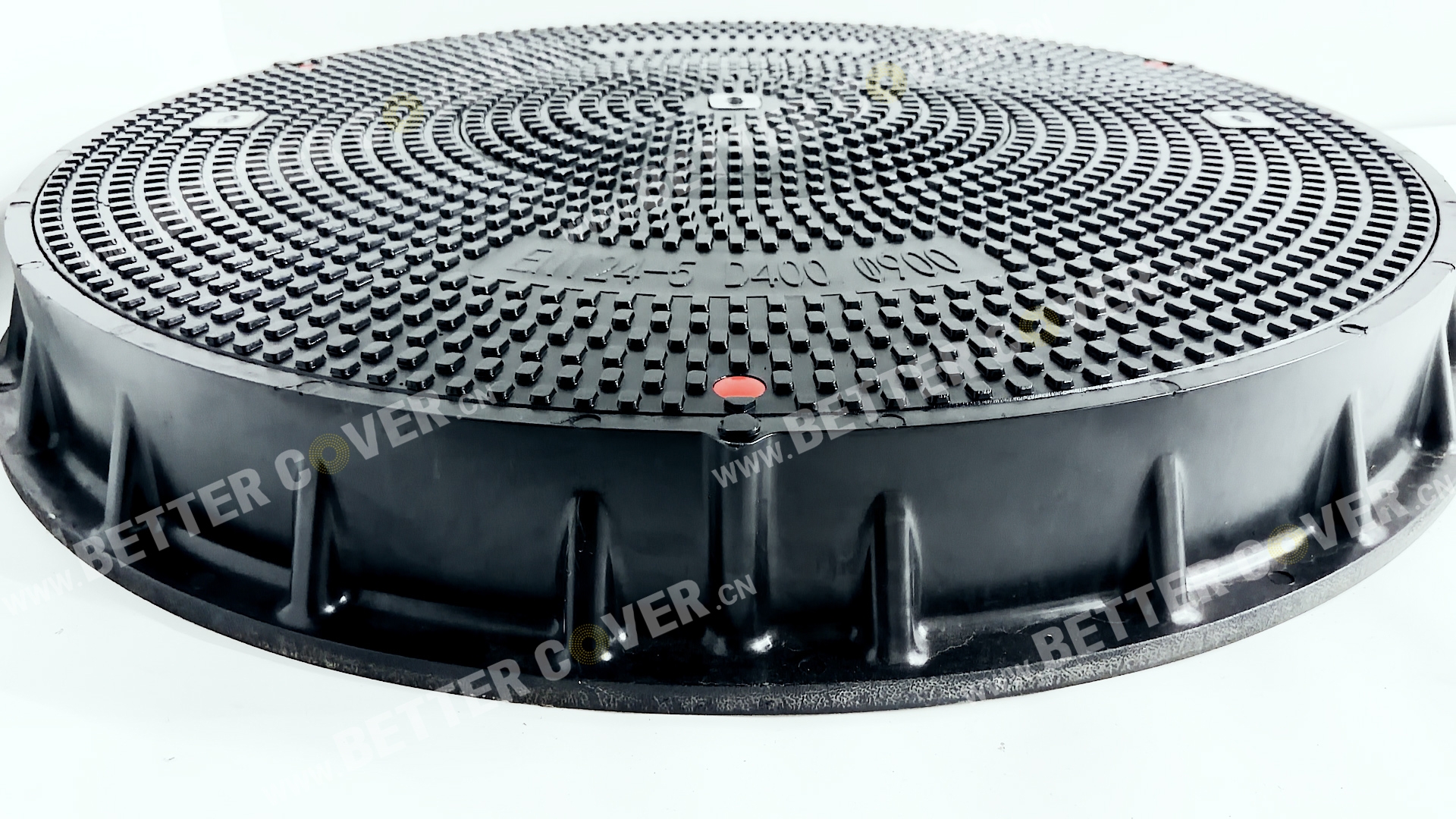

Application: SMC/FRP Composite Manhole Covers & Frames Designed Specifically for Gas Stations.
Designed specifically for gas station applications, our SMC/FRP composite manhole covers and frames feature a 100% sealed and waterproof structure, effectively preventing rainwater, wastewater, and debris from entering underground fuel tank areas. A reliable locking system keeps the cover securely in place and prevents displacement. With a D400 load rating (40 tons), the covers are engineered to withstand frequent traffic from passenger cars and heavy trucks, even when vehicles are parked directly on the cover, ensuring excellent safety, durability, and long-term performance.
Easy Maintenance：A Ø350 mm (13.8") inspection access cover is integrated into the center of the main cover. For routine maintenance, there is no need to open the entire manhole cover—simply open the access cover to quickly inspect the chamber, making maintenance easier and more efficient.
| Function | Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant |
| Product Color | Black Color |

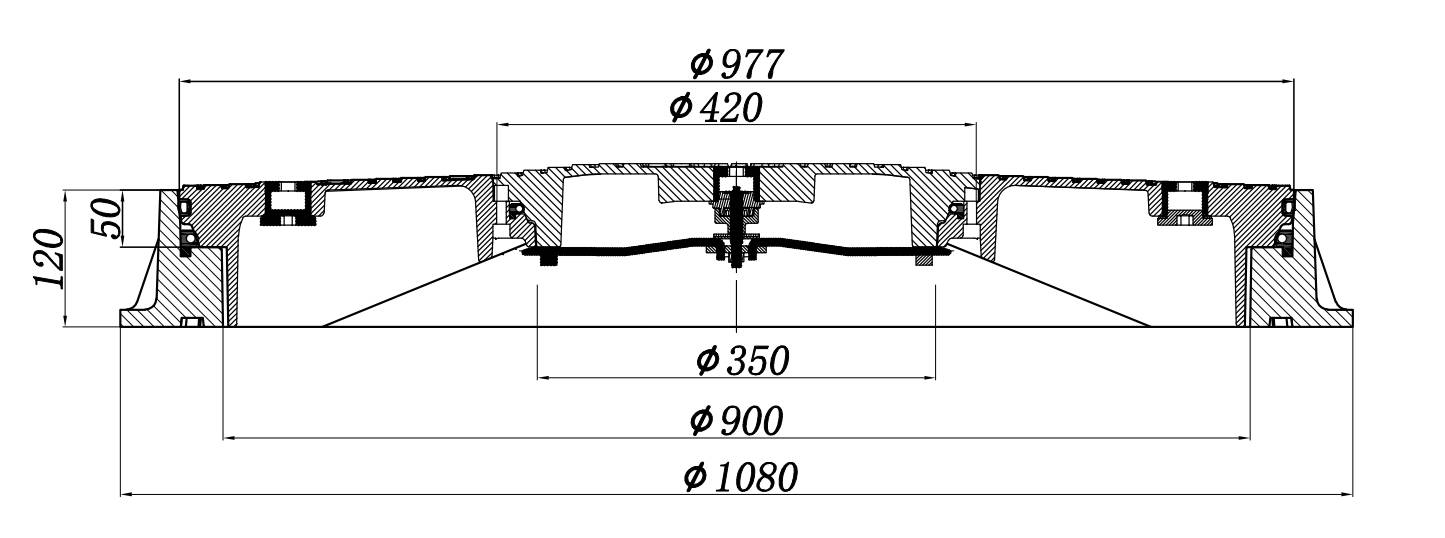

Unit: mm
| Product structure size (mm) | Manhole cover Depth | Manhole cover Dia | Manhole Frame Height | Load Ratings |
| 50 | 977 | 120 | D400 | |
| Manhole Frame Outer Dia | Clear Open Dia | Inspection Cocer | Weight(Kg) | |
| 1080 | 900 |  350 | 64 |

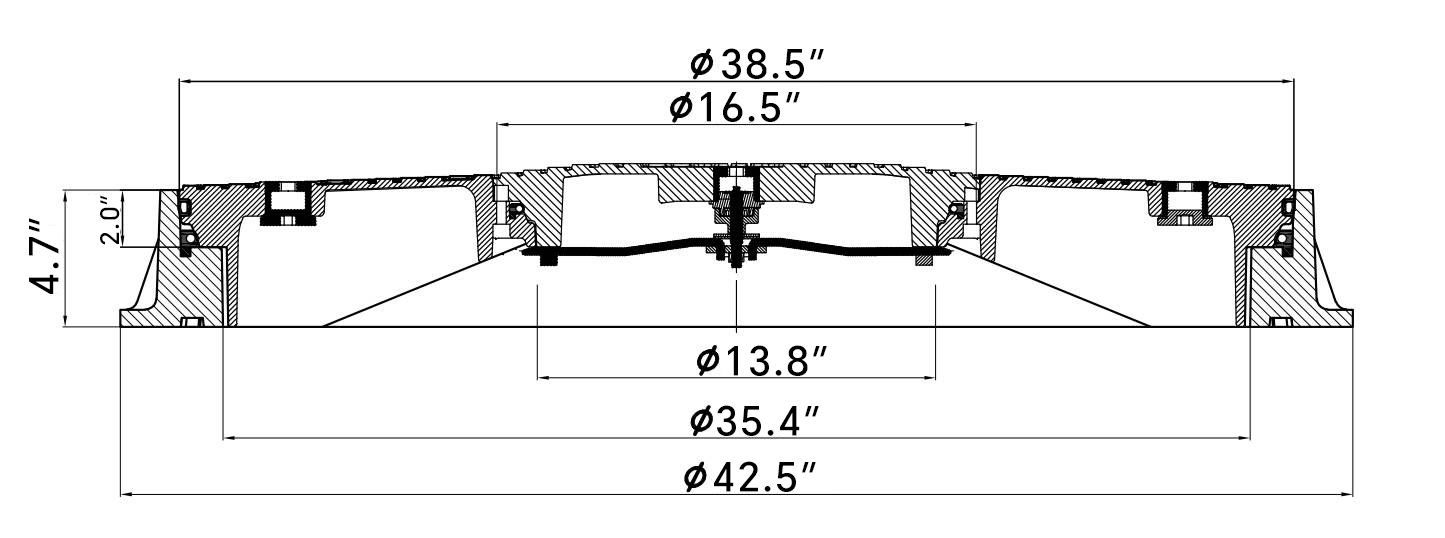

Unit: in
| Product structure size (in) | Manhole cover Depth | Manhole cover Dia | Manhole Frame Height | Load Ratings |
| 2.0″ | 38.5″ | 4.7″ | D400 | |

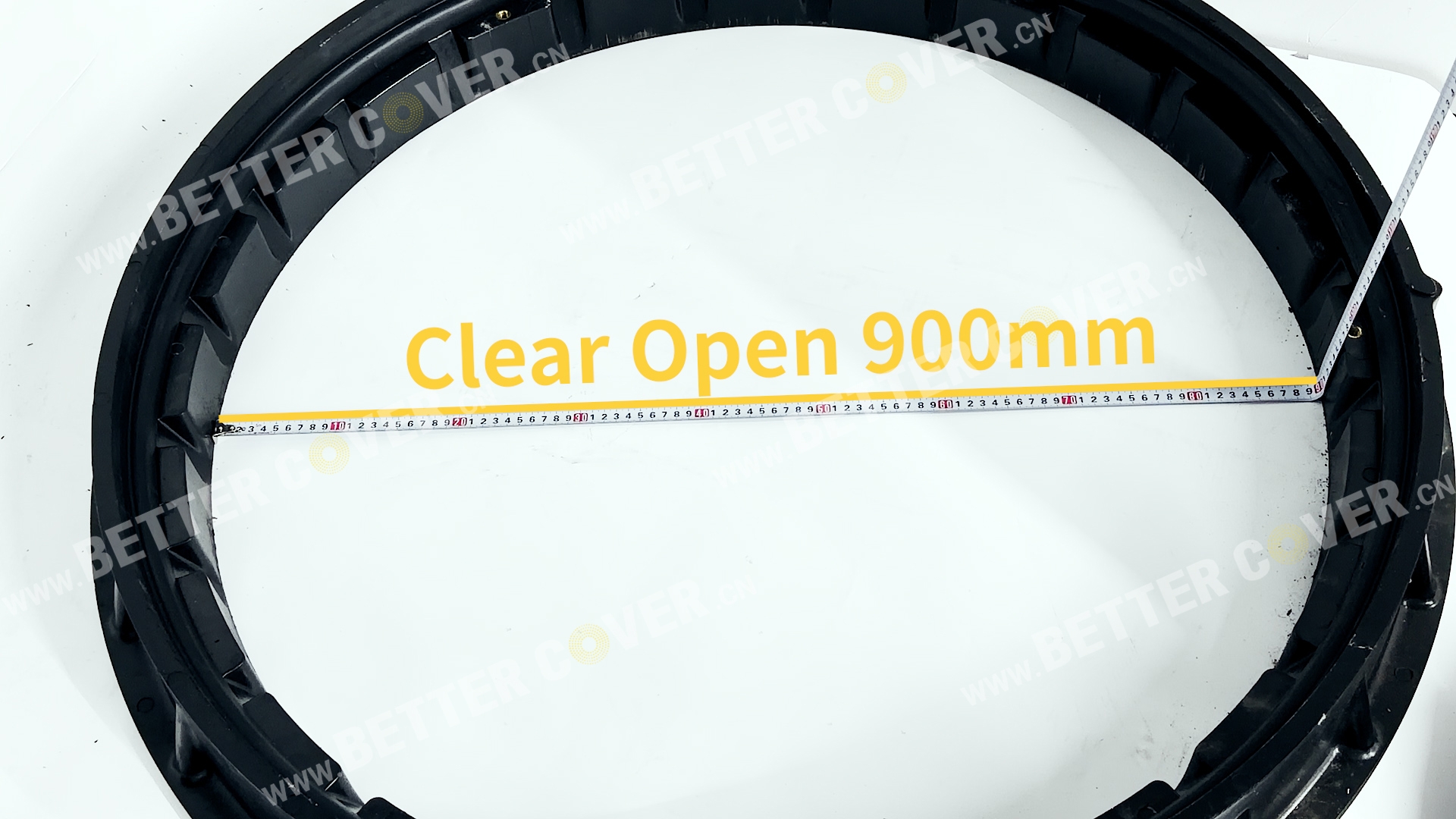

| Manhole Frame Outer Dia | Clear Open Dia | Inspection Cocer | Weight(Kg) | |
| 42.5″ | 35.4″ |  13.8″ | 64 |
Application
Gas stations

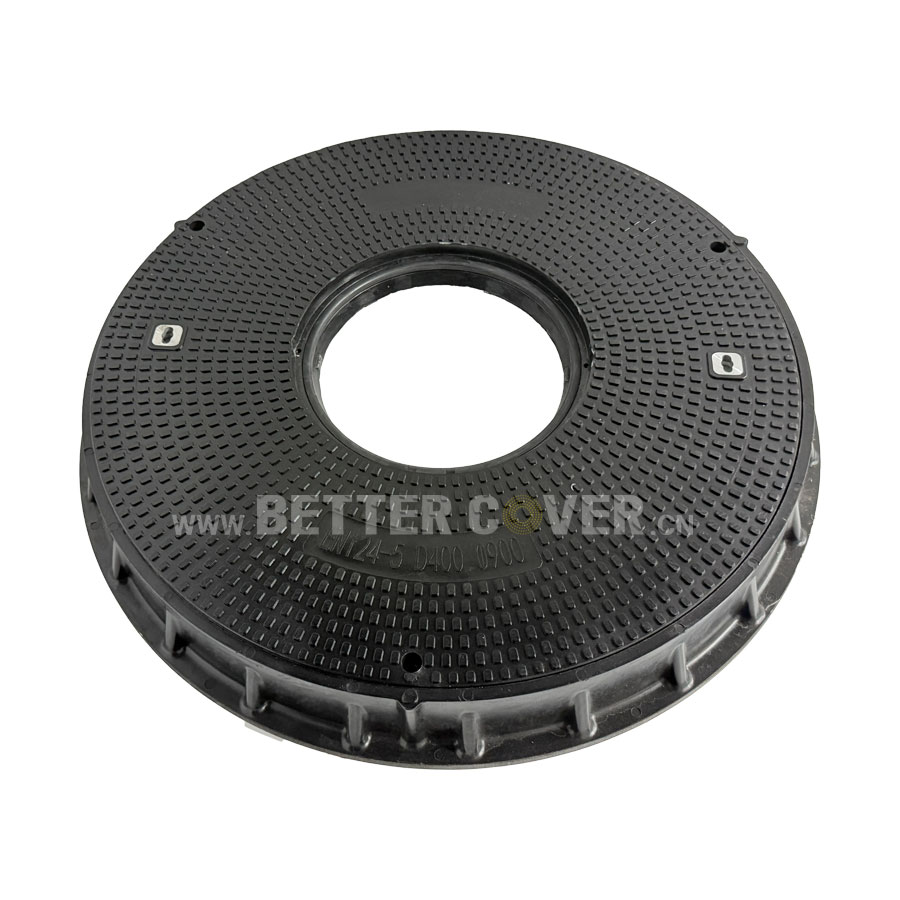

●Inspection sub cover

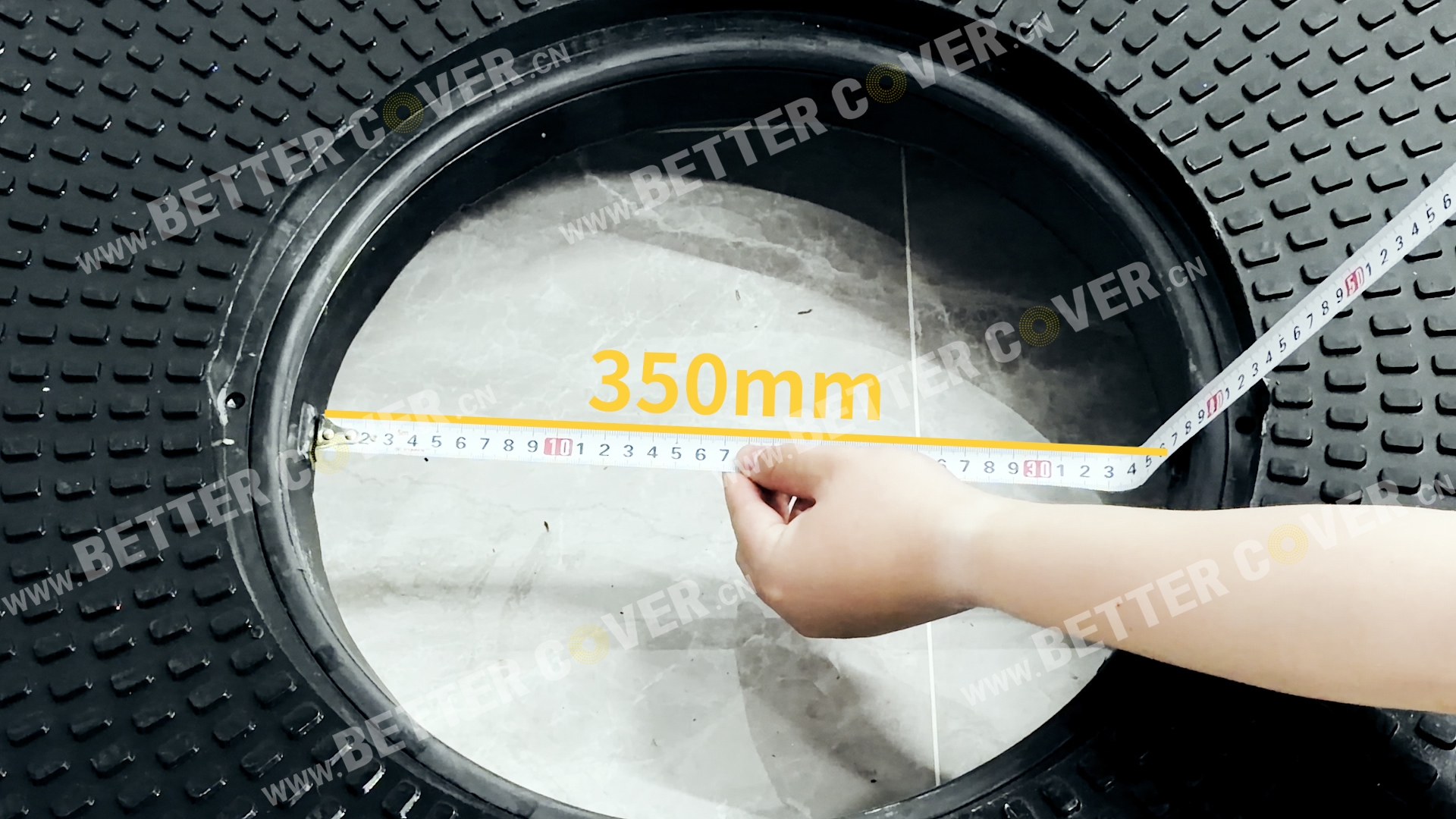

There is a locking sealing inspection sub cover with a net opening of ∅ 350mm(13.8") in the middle of the manhole cover, which is waterproof

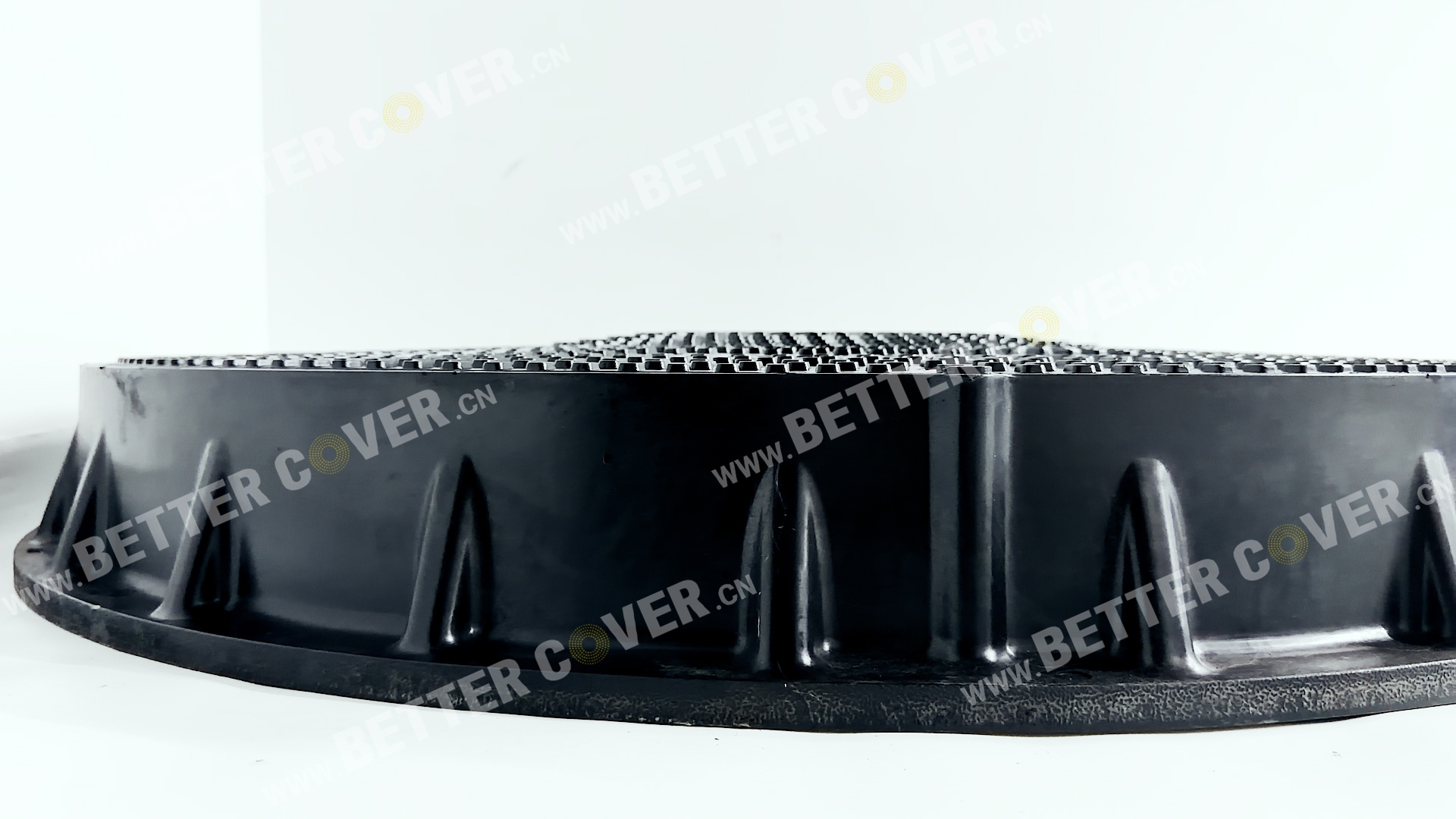

Scientific Structural Design for Lightweight Performance
and Enhanced Load Capacity.

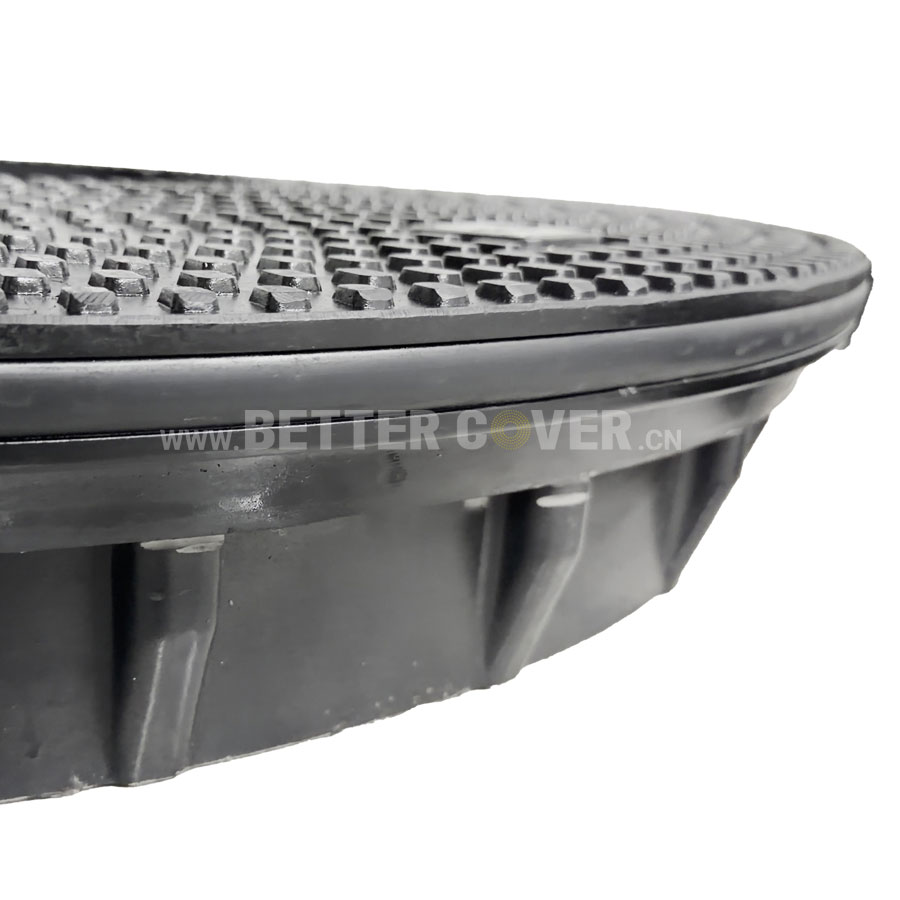

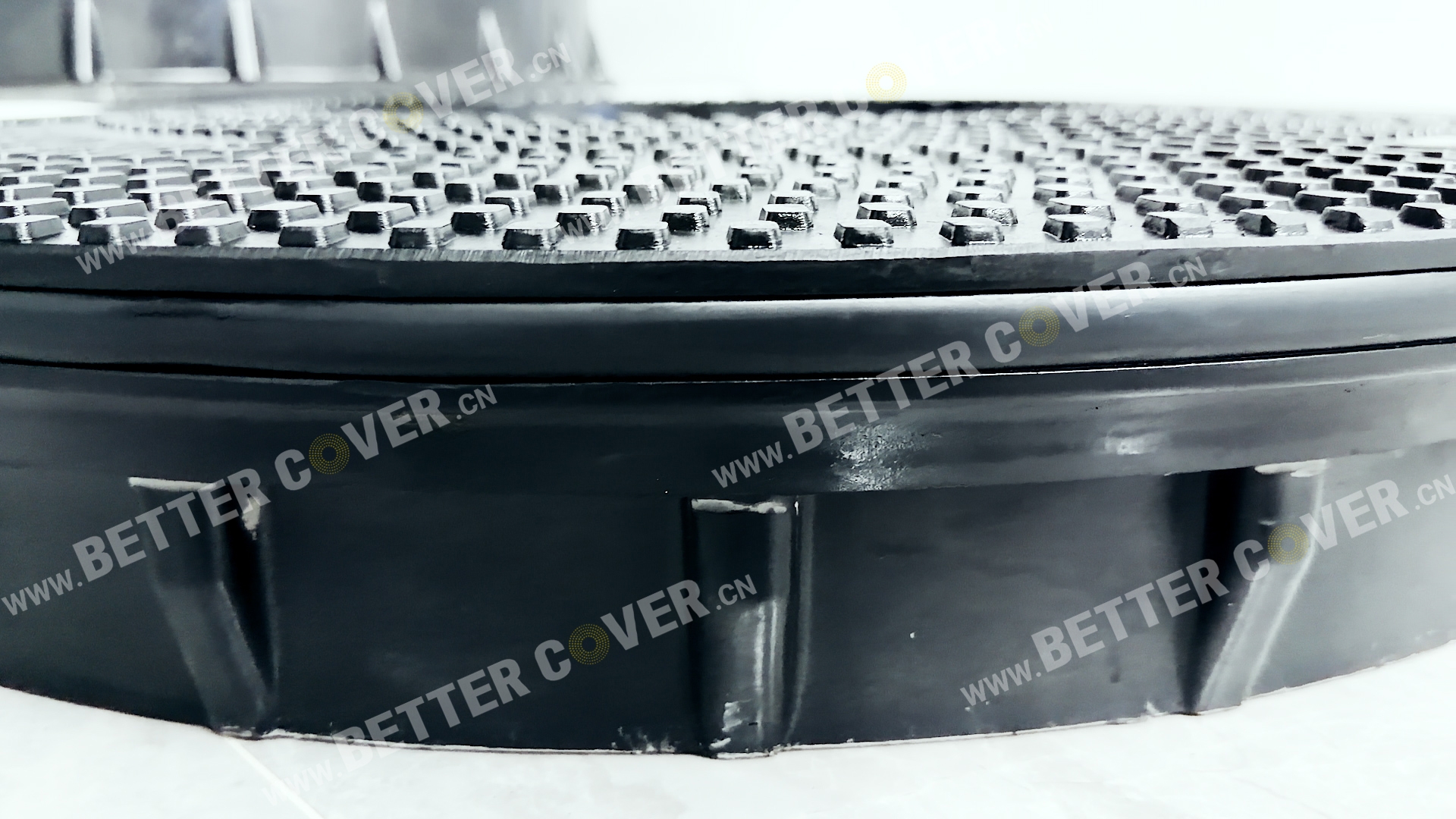

The cover and frame are precisely fitted to provide an effective seal
against rainwater, dust, and foreign matter.

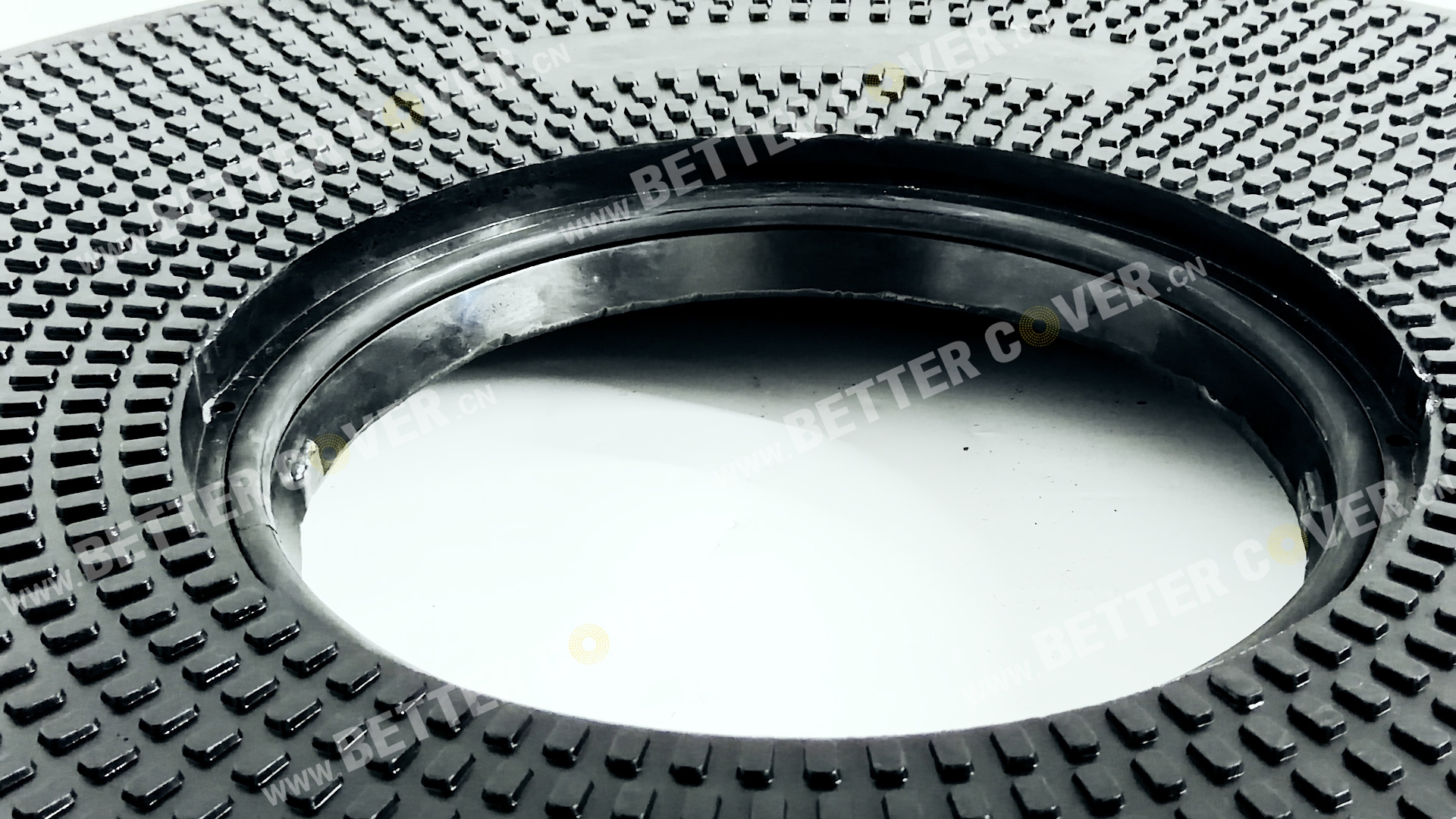

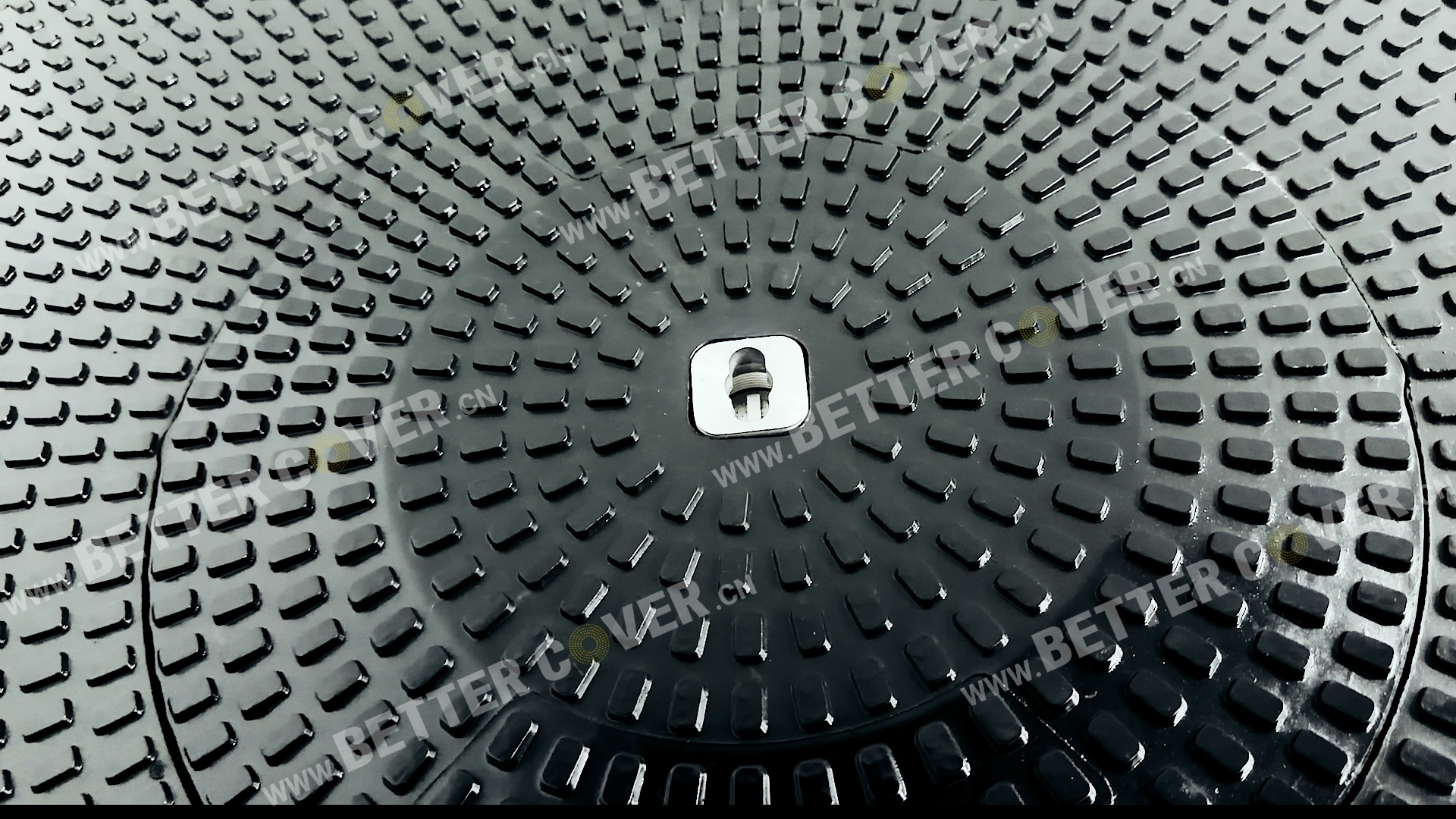

Central inspection port design allows quick routine inspections
without opening the entire cover.

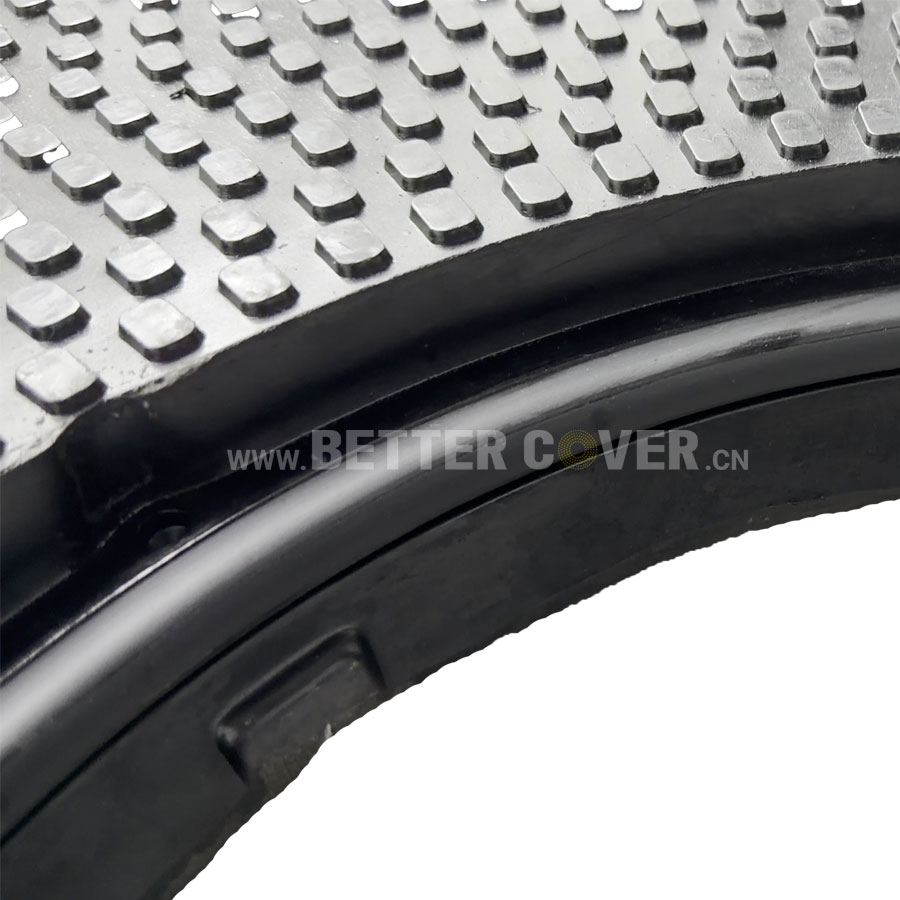

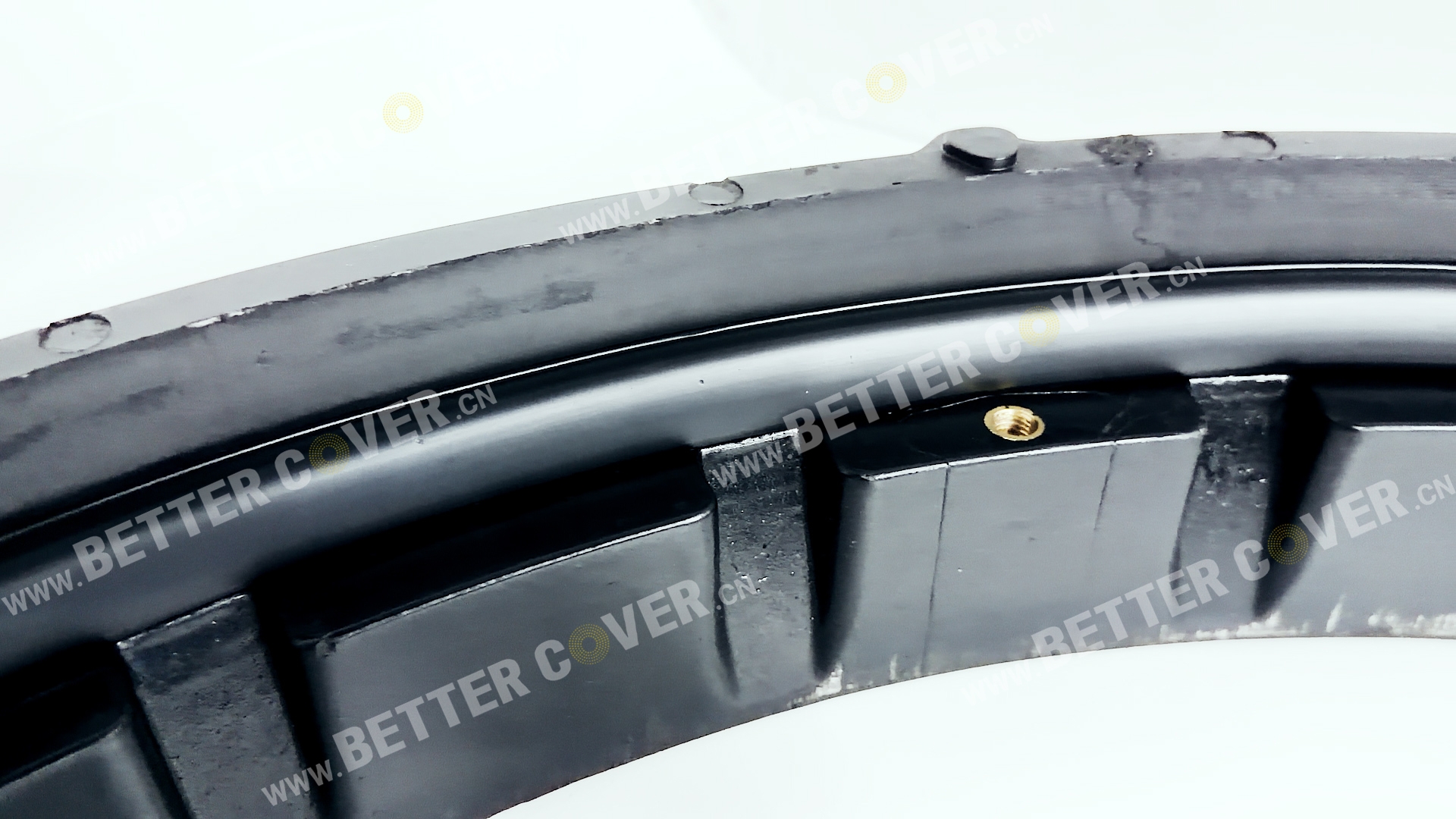

High-performance sealing gasket effectively prevents the ingress
of rainwater, dust, and debris.

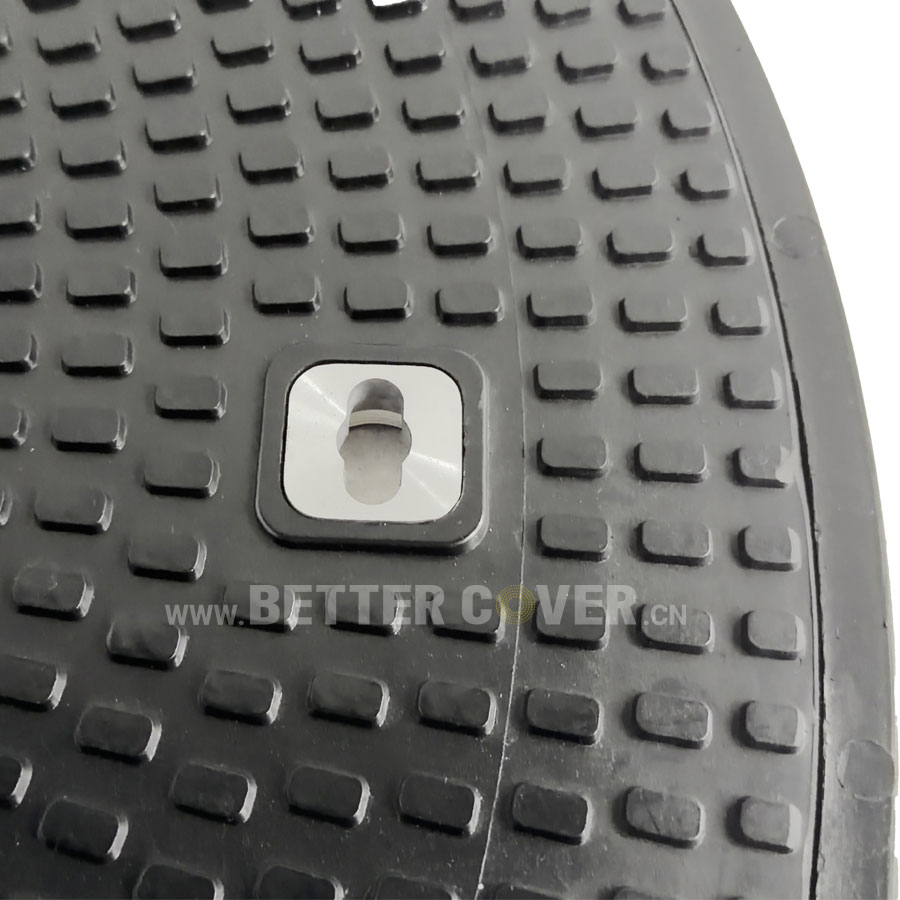

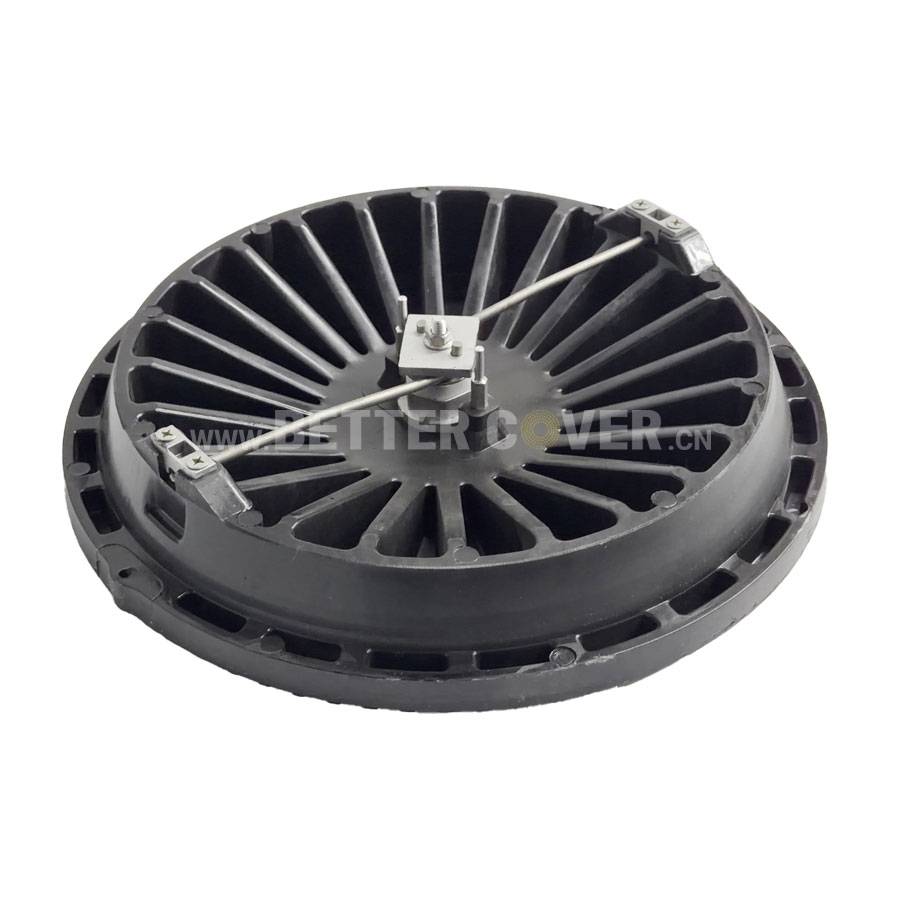

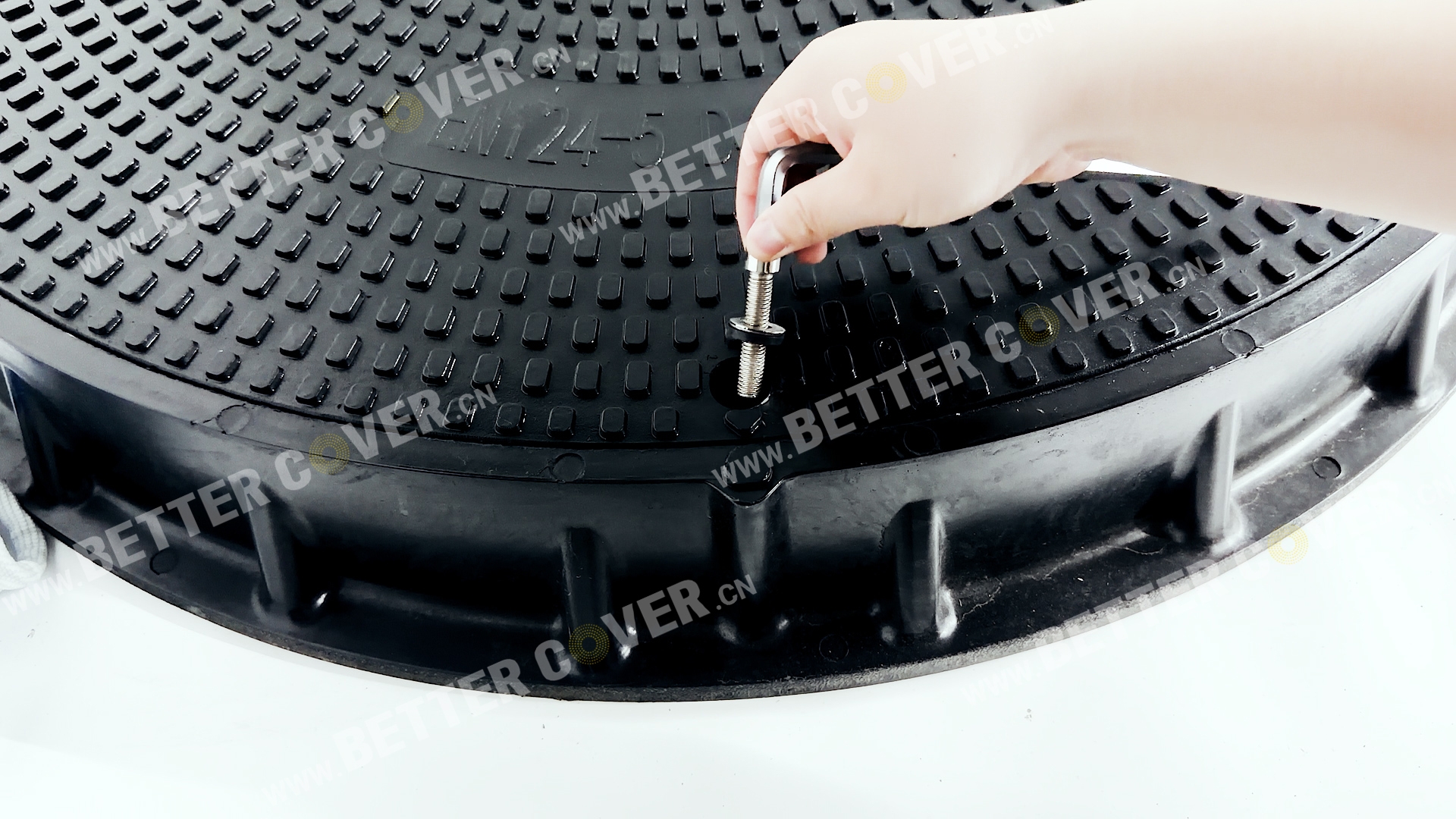

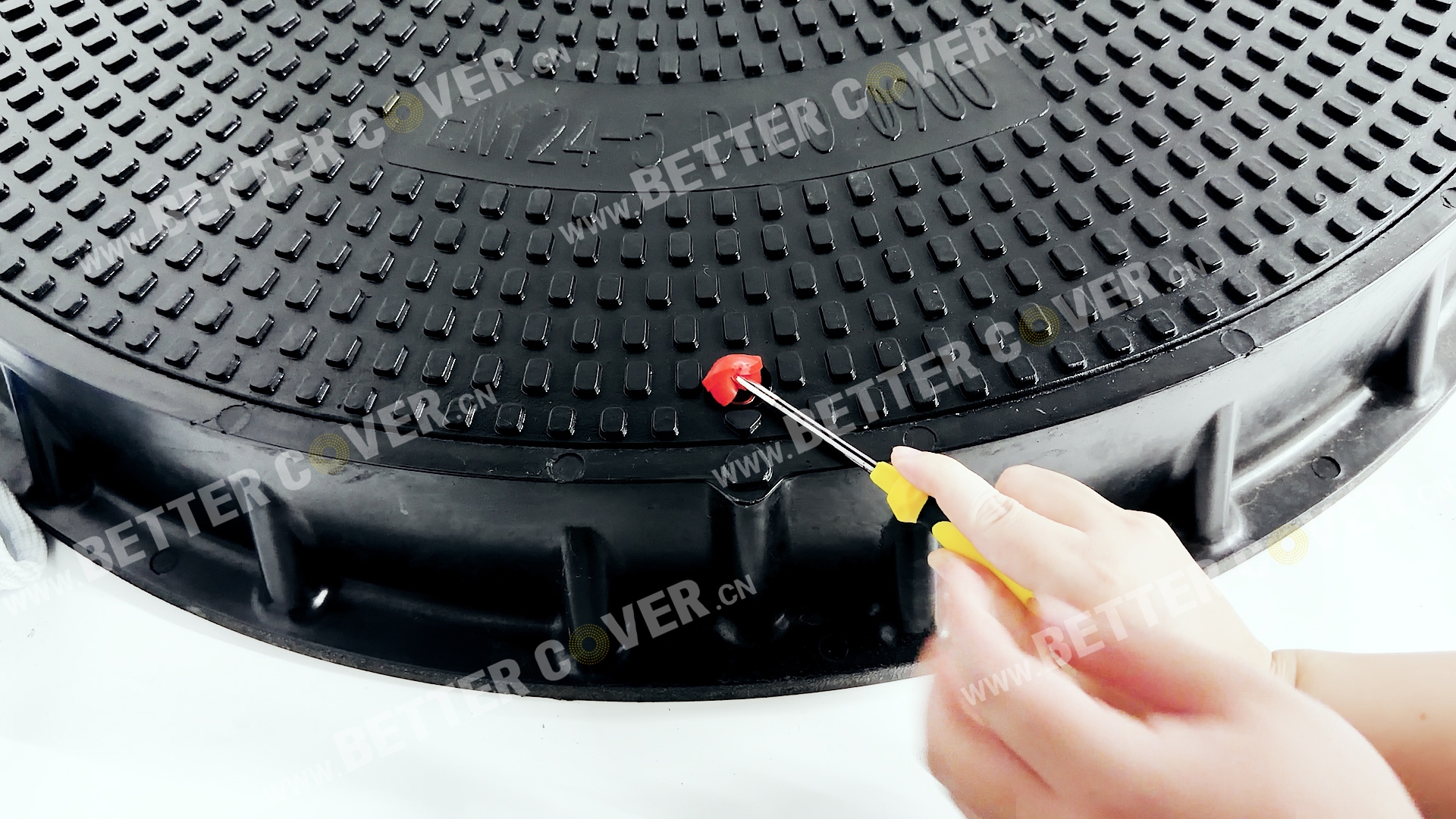

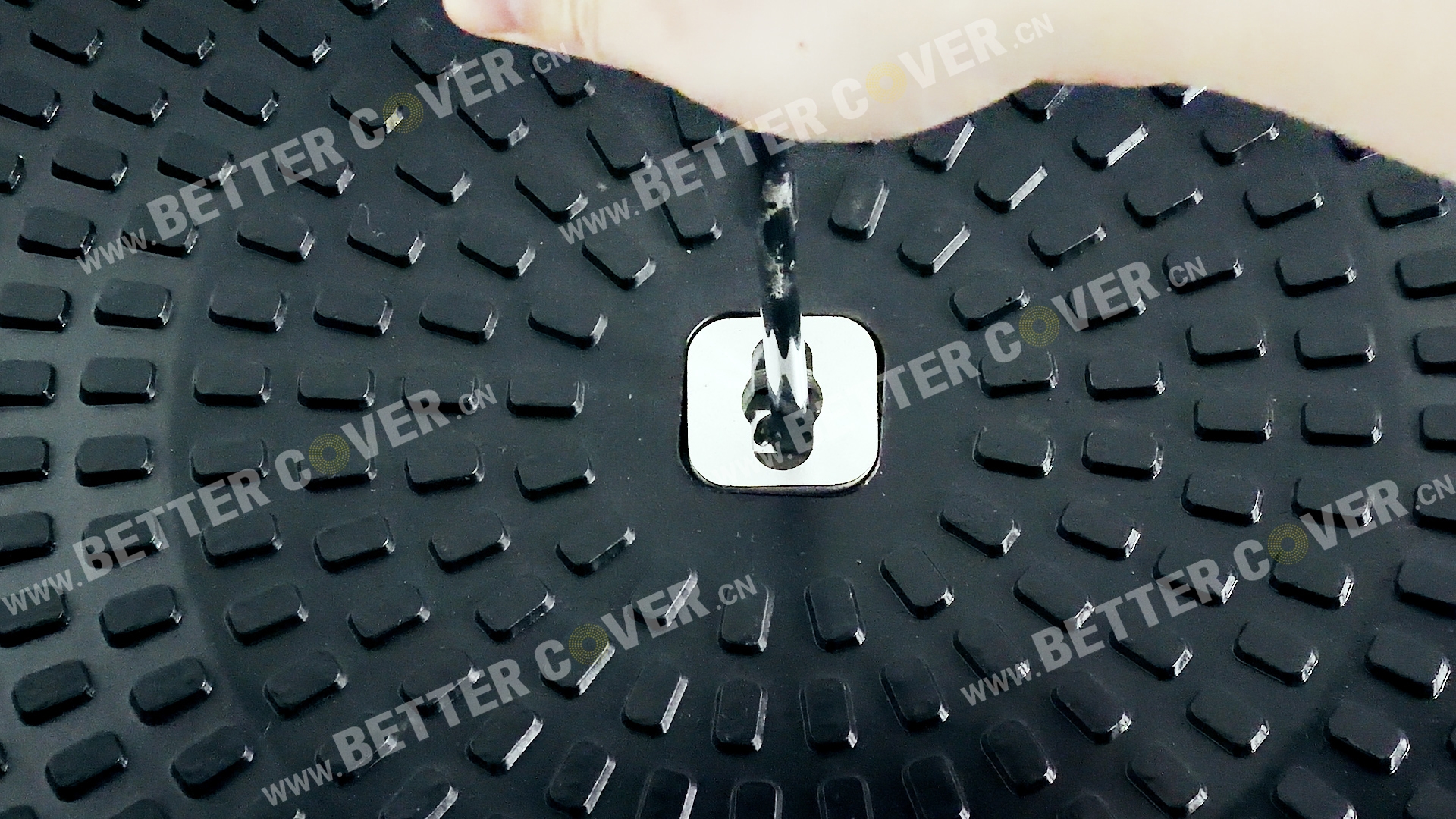

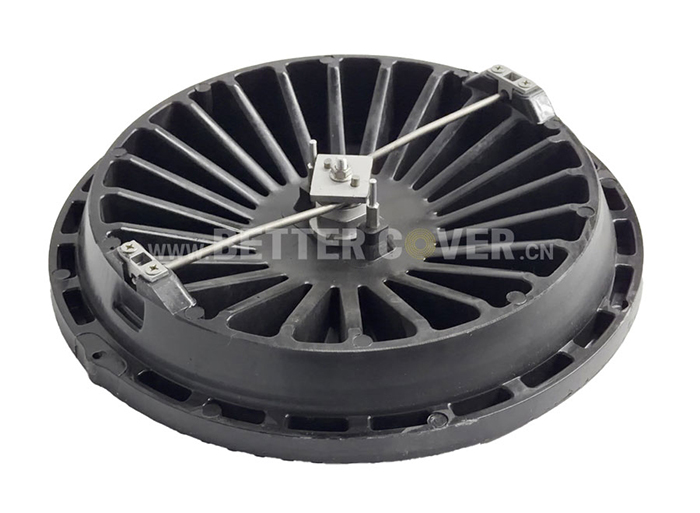

Locking bolts securely fix the cover in place
preventing displacement and uplift under repeated vehicle loading.
The double-sealed structure design effectively prevents rainwater
from entering and prevents oil and gas from escaping.
●Tool
We have mature OEM and ODM experience
Customizable logo, cover pattern, color and size
The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume
Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.
We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
