∅600mm(23.7") C250-600mm C250 Round Composite Manhole Cover & Frame,Manhole Cover & Frame,FRP Manhole Cover,Chinese Manhole Cover Manufacturers

600mm C250 Round Composite Manhole Cover & Frame, designed for roadside and kerbside drainage and utility access applications.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-1000 >1000
Day 5-30 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

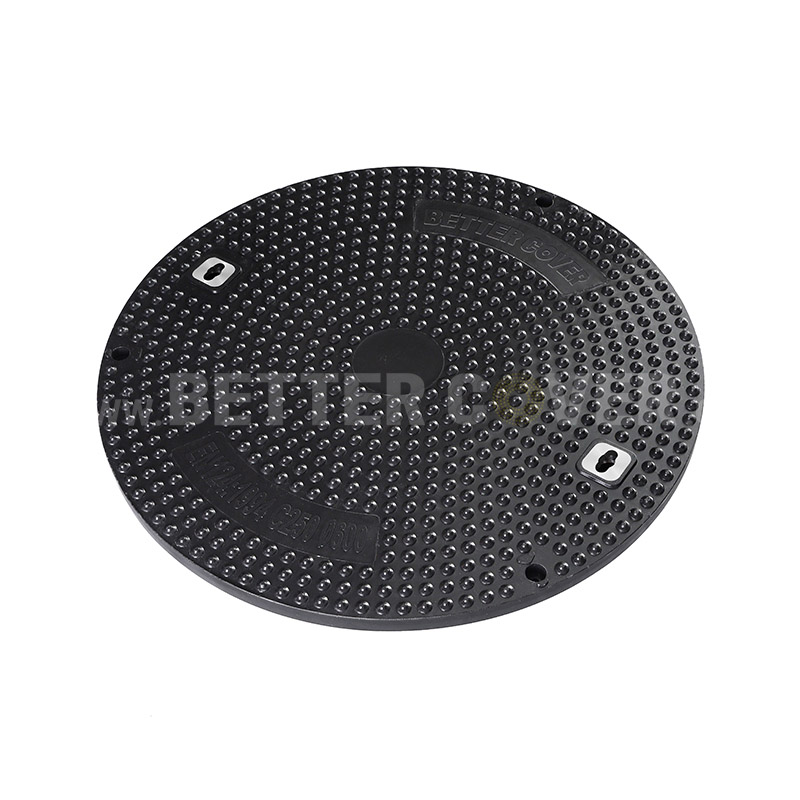

Product name: SMC FRP Composite ∅600mm(23.7") C250 Lockable Sewer Manhole Cover And Frame
Size:∅750X60mm(29.6"X2.4")
Clear open: ∅600mm(23.7")
Application: Residential areas, streets and alleys, areas with only light motor vehicles or small cars, on both sides of the road, starting from the curb
Function: Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color

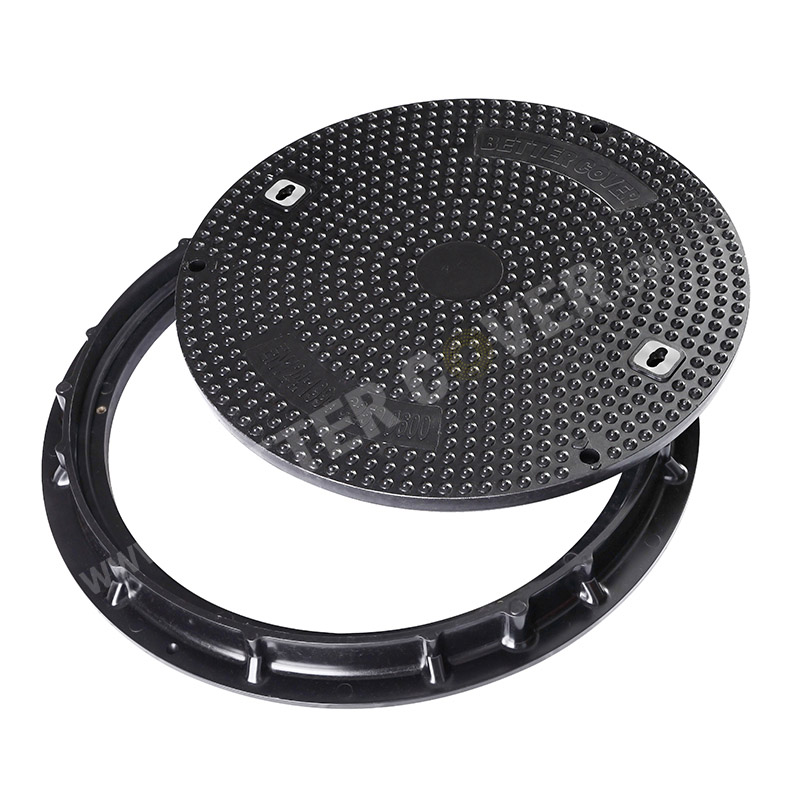

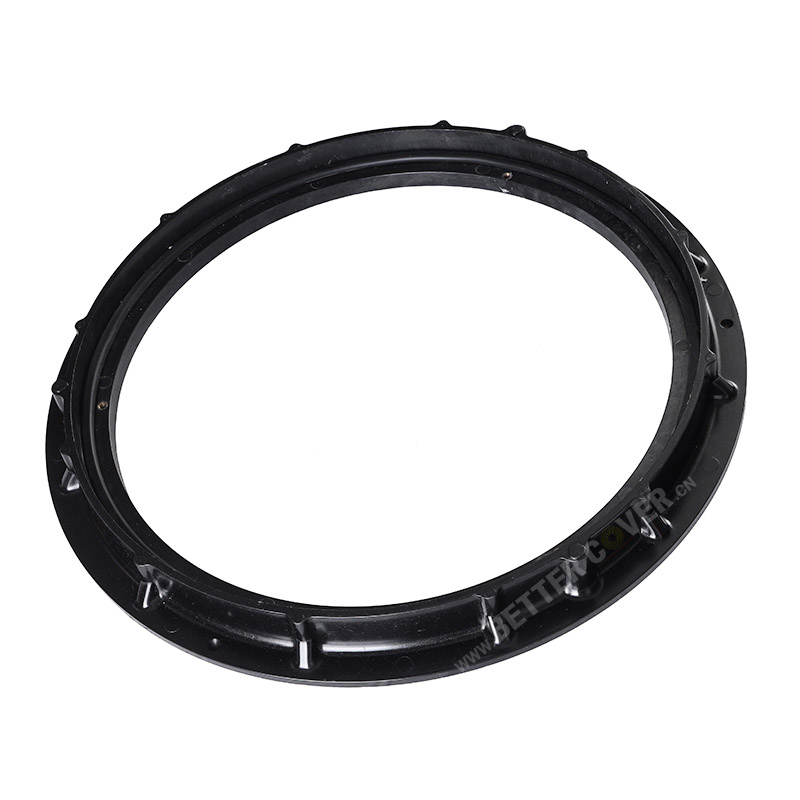

Product Structure: Manhole cover and frame, drainage handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 29Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, The aluminum sleeve of removable drainage handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:1994
Load Ratings: C250(25TON)

Product details

Function	Sewer, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

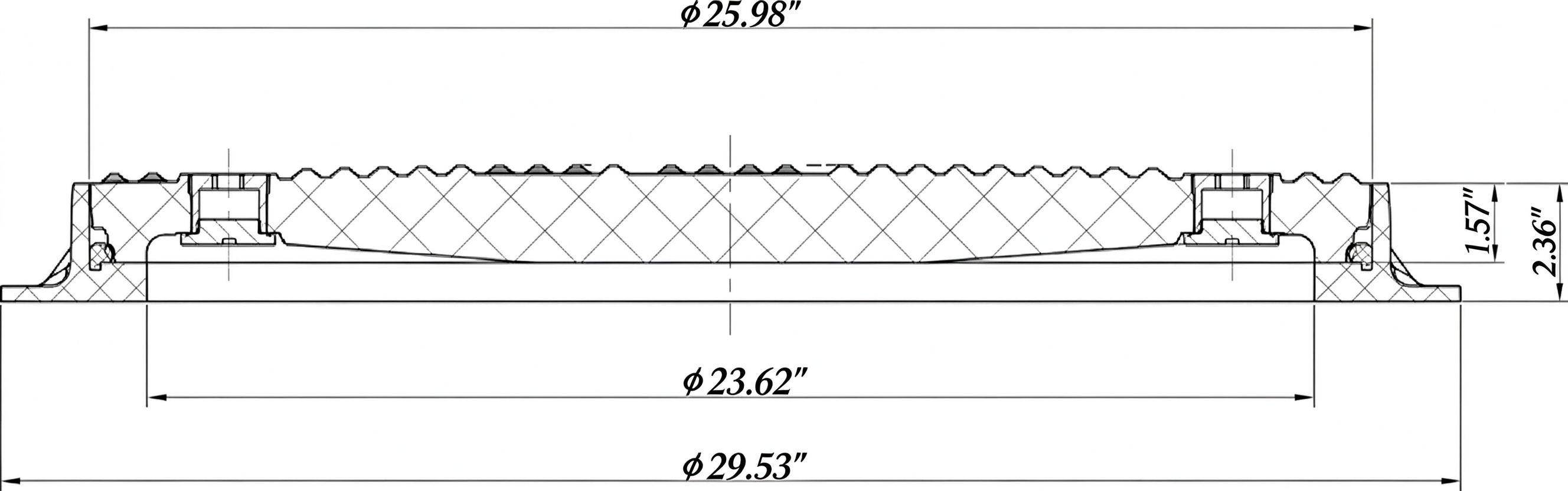

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	660	60	C250
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	750	600	&emsp;	29

A155 Tonnes
Areas which can only be used by pedestrians and pedal cyclists.
B12512.5 Tonnes
Footways, pedestrian areas and comparable areas, car parks, or car parking decks.
C25025 Tonnes
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
D40040 Tonnes
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.

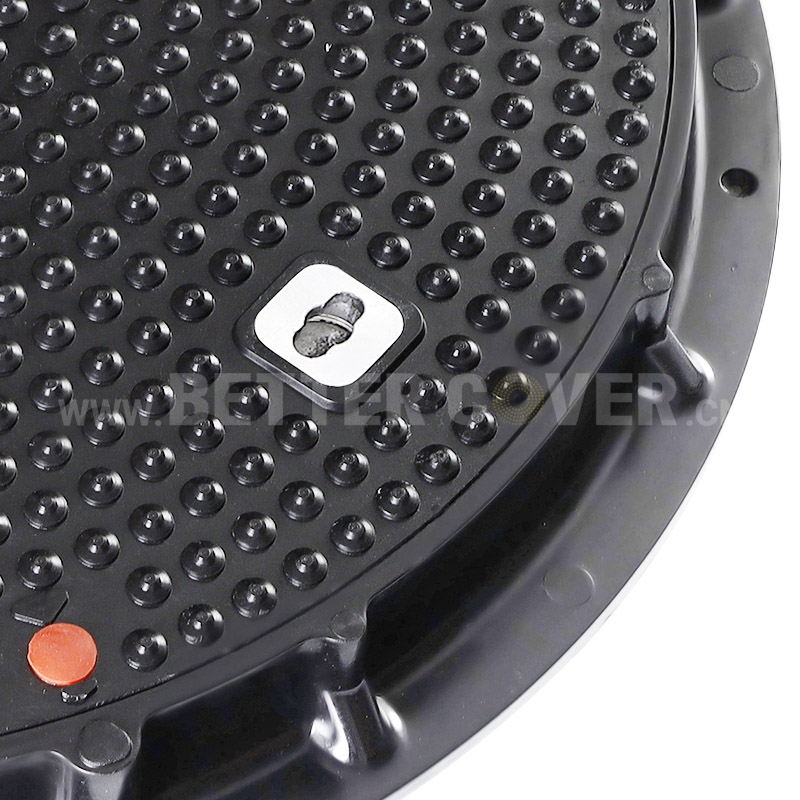

●Screw locking mechanism

●Tool

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

Factory Overview

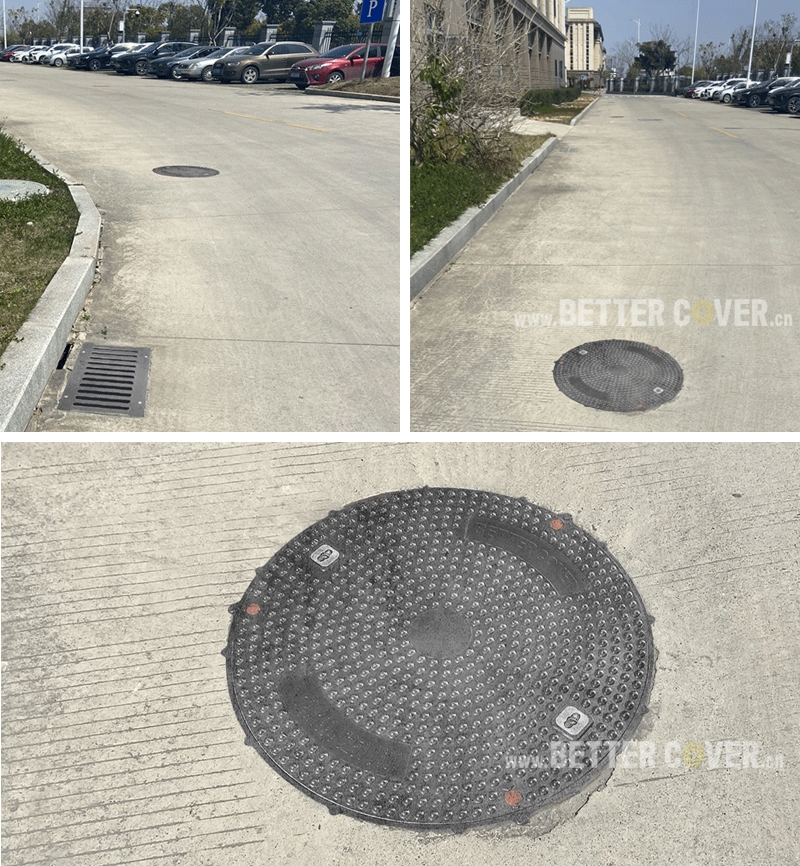

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
