600mm x 600mm(23.7"X23.7") C250-C250 Car Park Access Cover,C250 Parking Manhole Cover, C250 Parking Area Manhole Cover,C250 Access Cover, 600×600mm C250 Water Utility Access Cover

Designed for Parking Areas, Commercial Developments, and Water & Utility Infrastructure, this 600600mm C250 composite access cover offers reliable heavy-duty performance, excellent corrosion resistance, and long-term durability. Its lightweight and robust FRP/SMC construction makes installation and maintenance easier, while the sealed and waterproof design helps protect underground utility facilities from water, dirt, and debris.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >200
Day 7 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

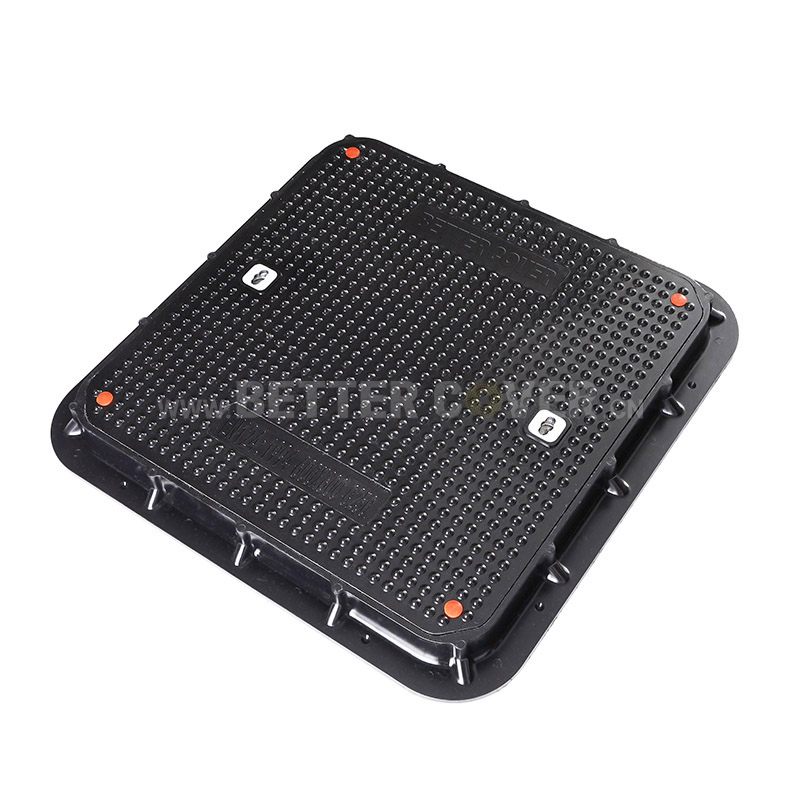

Product name: SMC FRP Composite 600X600mm(23.7"X23.7") C250 Lockable Waterproof Manhole Cover And Frame
Size: 750X750X60mm(29.6"X29.6"X2.4")
Clear open: 600X600mm(23.7"X23.7")
Applications：Parking Areas 、 Roadside & Kerbside Areas 、 Water & Utility Infrastructure、 Telecom & Cable Chambers、 Drainage Systems、 Commercial & Residential Developments
Function: Lightweight、Waterpioof, Anti Static, Corrosion Resistantand aging resistant、Lockable, Anti-theft (no recycling value)、Anti Slip
Color: Black Color

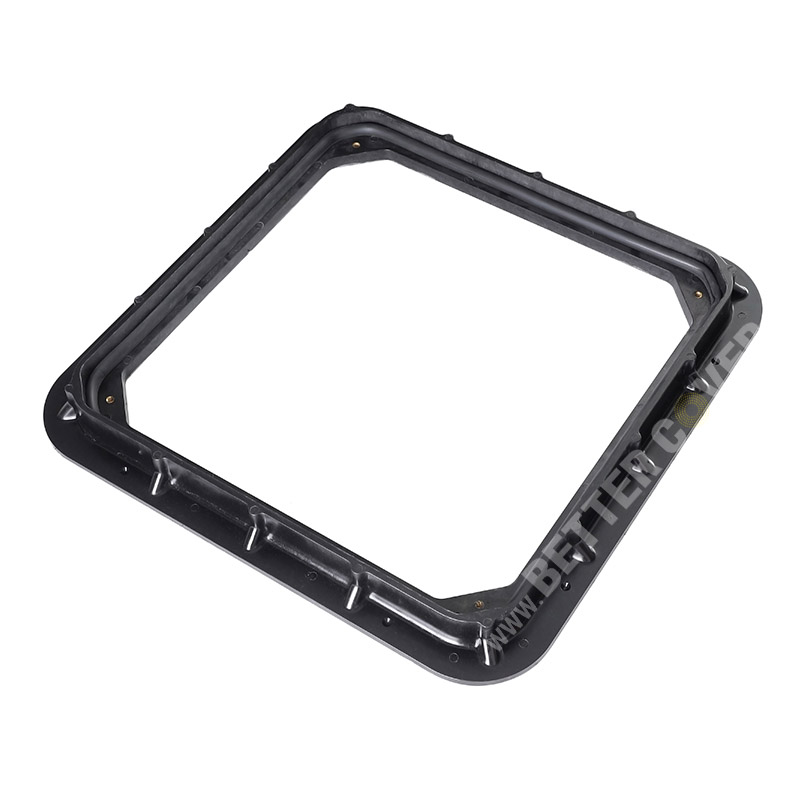

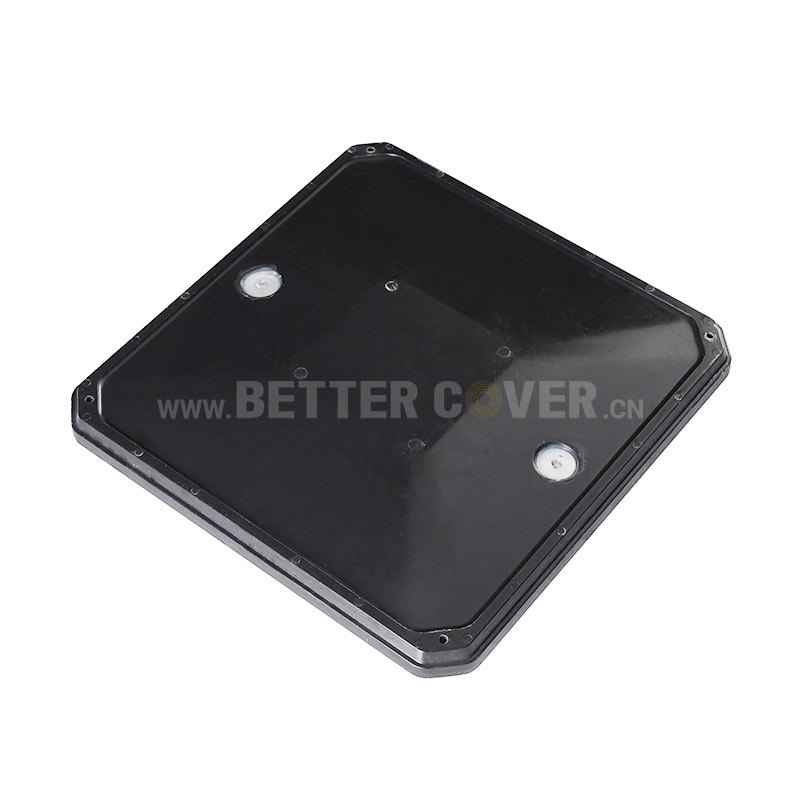

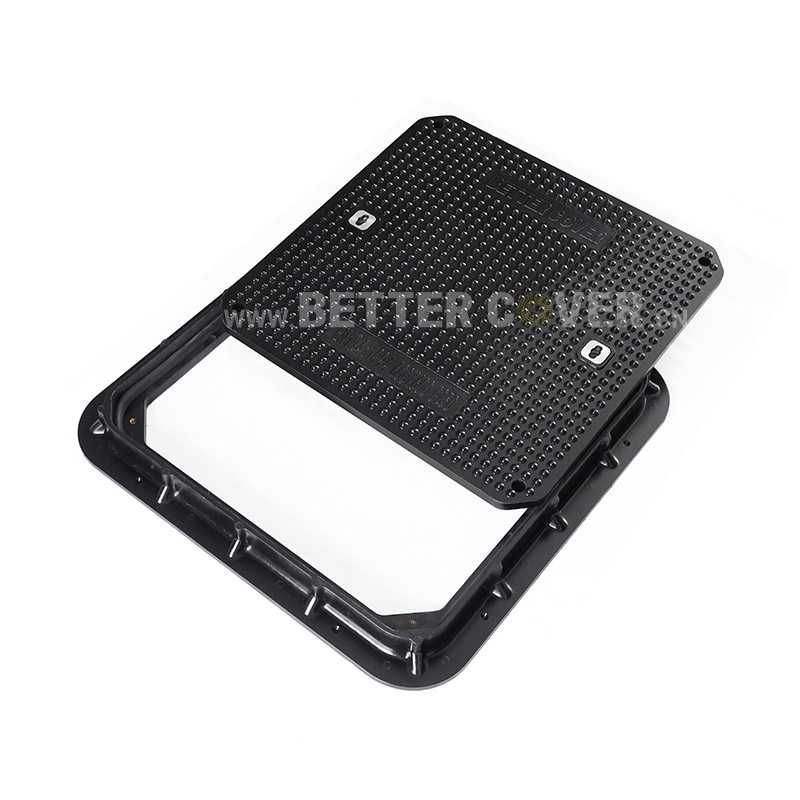

Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 35Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:2015
Load Ratings: C250(25TON)

Product details

Function	Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	646X646	60	C250
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	750X750	600X600	&emsp;	35

A155 Tonnes
Areas which can only be used by pedestrians and pedal cyclists.
B12512.5 Tonnes
Footways, pedestrian areas and comparable areas, car parks, or car parking decks.
C25025 Tonnes
For gully gratings installed in the area of kerbside channels of roads. This area extends from a maximum of 0.5m into a carriageway to a maximum of 0.2m into the footway. Recommended for minor roads/areas of slow moving traffic.
D40040 Tonnes
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.

Constantly strive for perfection

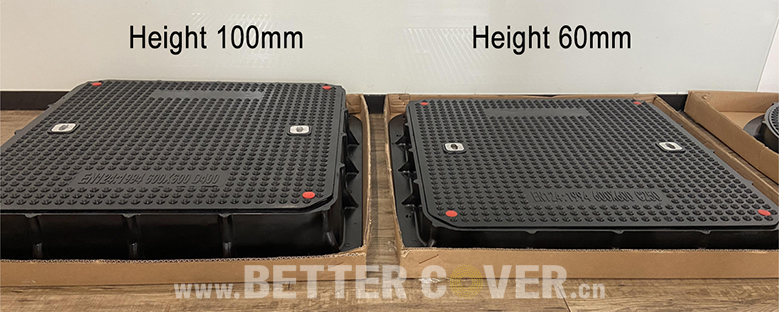

●There are 2 product heights to choose from

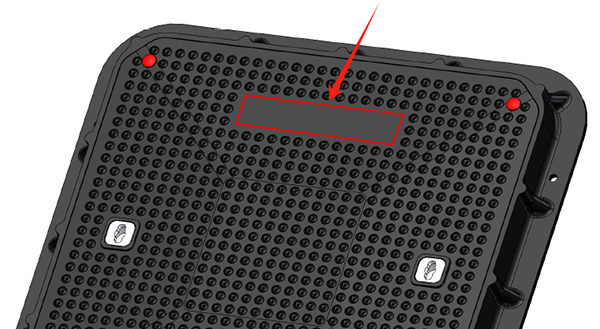

● Support LOGO customization
Customer-specified Logo can be printed on the product

●Sealed structure
Sealed structure to effectively prevent water from entering

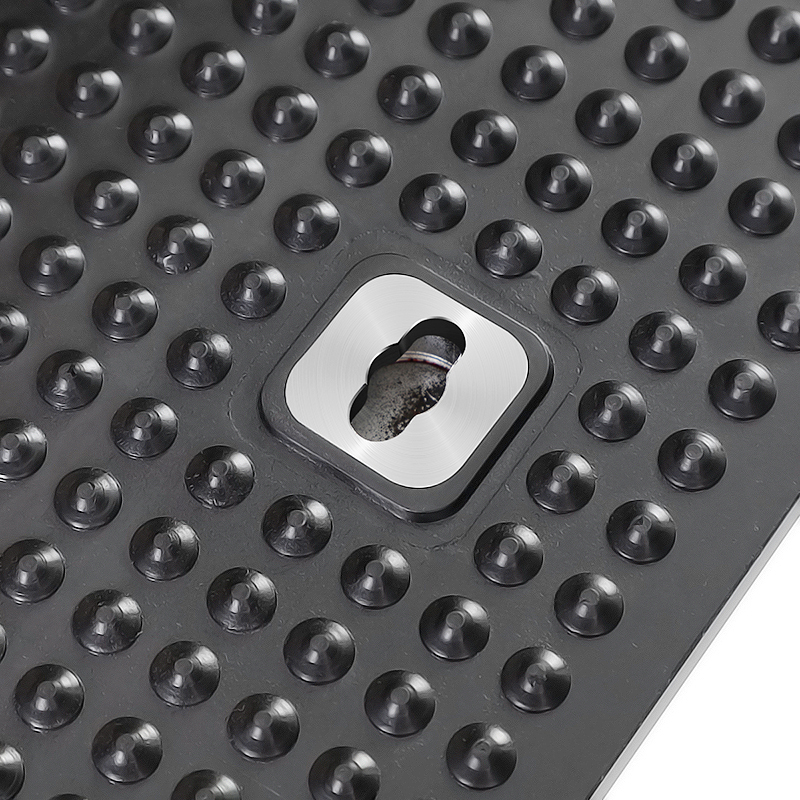

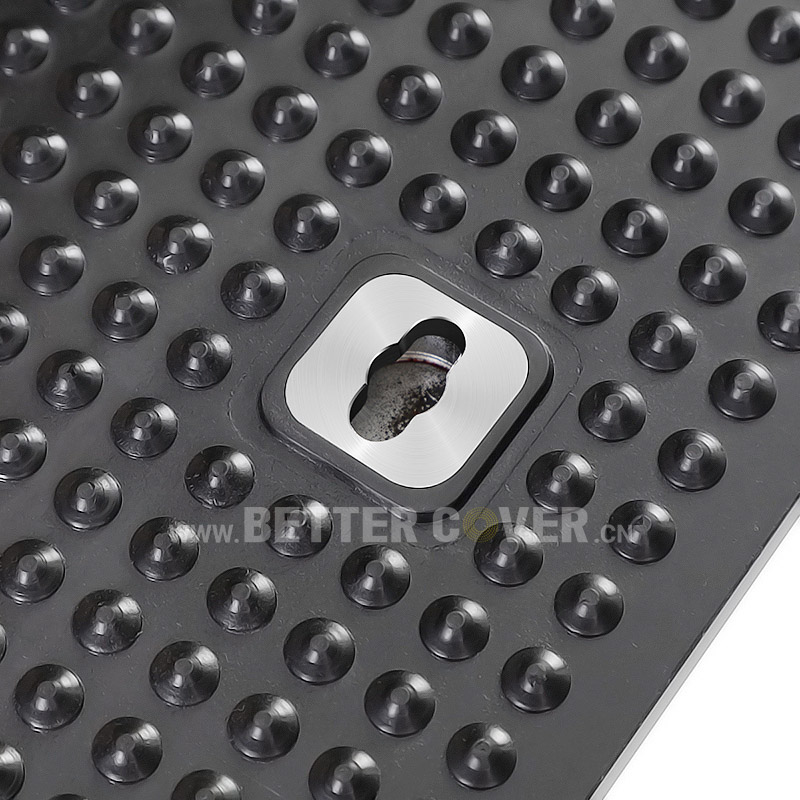

●Screw locking mechanism、Aluminum handle sleeve

●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.

●Tool

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
