| Quantity (set) | 1-100 | >100 |
| Day | 5 | negotiated |
Quick details
Product Standard: BS EN124:2015
Load Ratings: D400(40TON)
Sealed and Locked Spill Containers（D400）

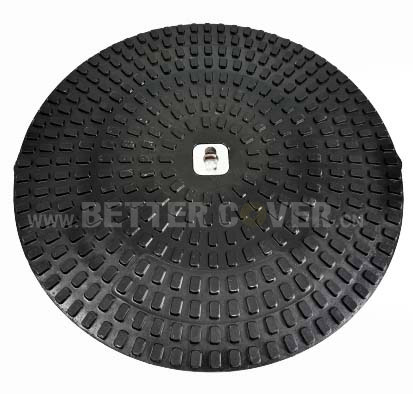

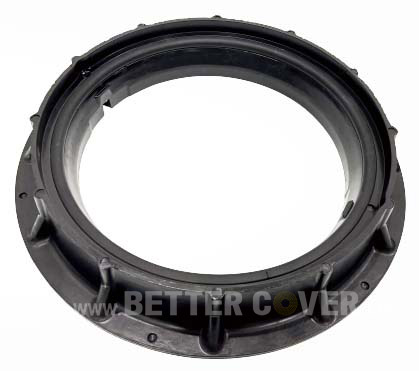

1、Manhole cover and barrel are made of SMC composite material, offering superior mechanical properties,corrosion resistance, and aging resistance.
2、Barrel and base feature a seamless integrated design, ensuring long-term stable and reliable sealing performance, achieving air-tightness standards.
3、Operating temperature range is -50°C to 150°C, suitable for harsh environments.

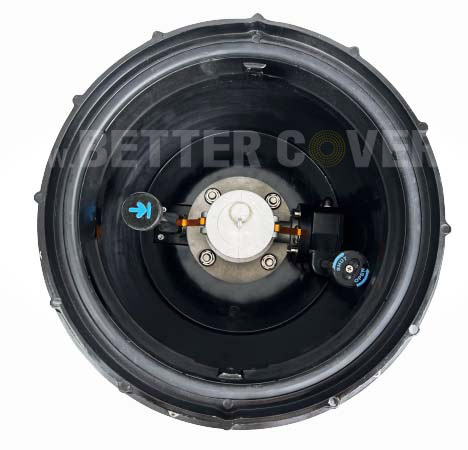

4、The butterfly valve and oil drain valve are custom-developed and produced, making oil drainage more effortless and convenient.
5、The ball valve reliably seals the internal oil and gas of the tank, preventing the diffusion of oil and gas, which reduces risks and pollution.
6、Any accidentally spilled oil can be quickly directed into the oil discharge pipeline, avoiding contamination and waste.
| Function | Sealed structure, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant |
| Product Color | Black Color |
| Product structure size (mm) | Manhole cover Depth | Manhole cover Dia | Manhole Frame Height | Load Ratings |
| 60 | 420 | 490 | D400 | |
| Manhole Frame Outer Dia | Clear Open Dia | Weight(Kg) | ||
| 500 | 350 | 45 |
BETTER COVER R&D and design with safety as the primary starting point.
Spill containers manhole covers and frames are made of SMC composite materials, which are anti-static and safer!
At the same time, the composite manhole cover and frame adopt a sealing structure and locking mechanism to effectively prevent the entry of rainwater from the ground and effectively protect the internal equipment，the manhole cover with locking is safer
The spill containers on the market uses cast iron manhole covers, which are prone to sparks and bring safety hazards.
At the same time, cast iron manhole covers and frames cannot be sealed, and surface rainwater will enter, which will reduce the service life of internal equipment.
Sealed structure with locking device and composite manhole cover and frame

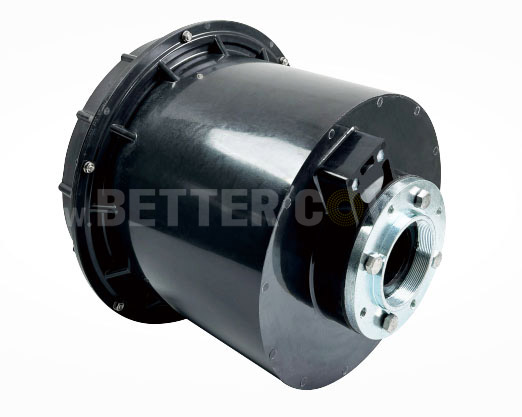

BETTER COVER has upgraded the oil unloading anti-overflow handhole well structure, using SMC composite materials for the barrel body and base, and forming them in one piece under high temperature and high pressure, making the product more sealed and safer as a whole.
The barrel body and base of this product on the market adopt a splicing structure, which is prone to gaps when installed improperly.
Operation Guide
Application

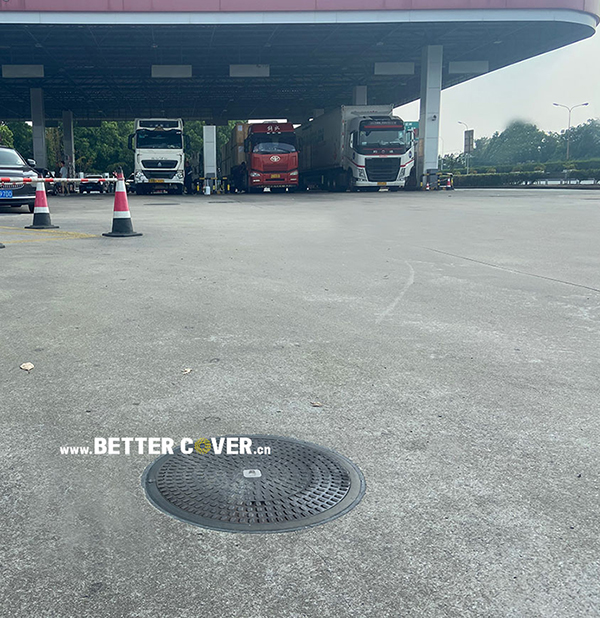

Gas stations
For covers and gratings used in carriageways of roads (including pedestrian streets), hard shoulders and parking areas, for all types of road vehicles.
●Support Customization Of Products With Customer Logo
●Tool
The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume
We have mature OEM and ODM experience
Customizable logo, cover pattern, color and size
Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.
We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
