∅350mm(13.8") C250 _Sewer Manhole Cover & Frame

∅350mm C250 Sewer manhole cover & frame used for sewage drainage and rainwater drainage. Easy to open and low maintenance cost. Size and pattern can be customized according to demand, welcome to consult.

  • Sample: Set / 1 Set (Min. Order)
  • Production time:
    Quantity (set)1-100>100
    Day5negotiated
  • Customized: Support customization
  • Transport: Support sea transportation
Product description

summary

Quick details

  • Product name: SMC FRP Composite ∅350mm(13.8") C250 Sewer Manhole Cover And Frame
  • Size: ∅500X80mm19.7"X3.2"
  • Clear open: ∅350mm(13.8")
  • Application: Residential areas, streets and alleys, areas with only light motor vehicles or small cars, on both sides of the road, starting from the curb
  • Function: Sewer, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
  • Color: Black Color

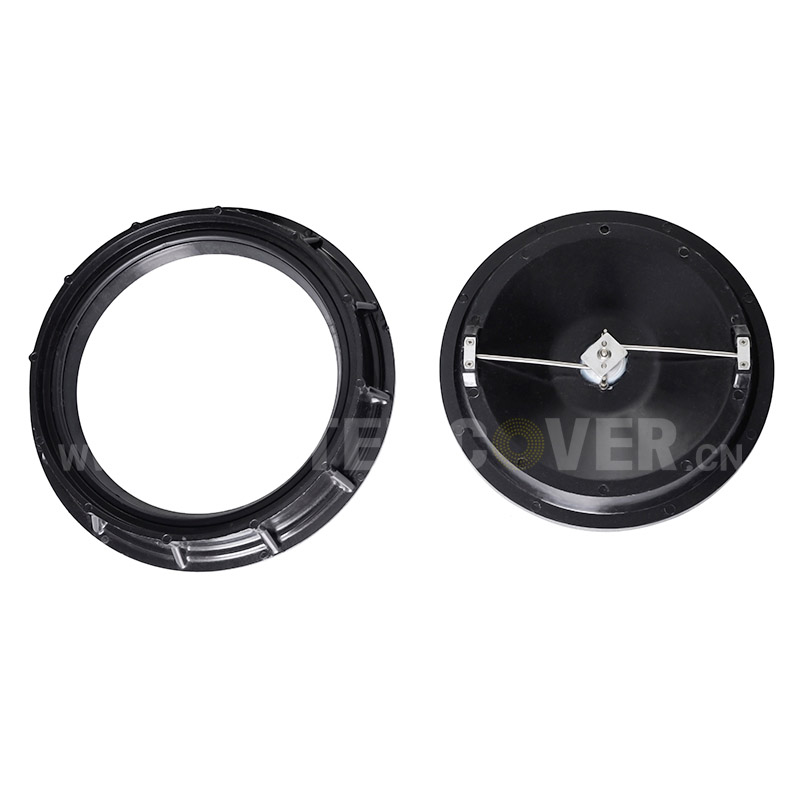

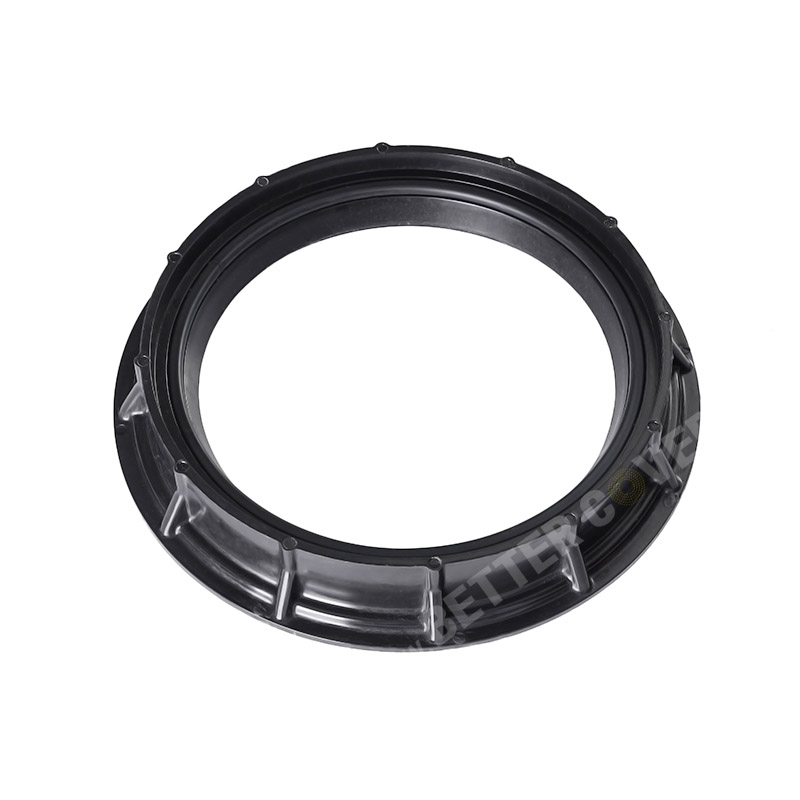

  • Product Structure: Manhole cover and frame, Drainage handle aluminum sleeve
  • Net Weight: 14Kg
  • Product Material: The manhole cover and frame are made of SMC FRP composite material,  the aluminum sleeve of removable drainage handle adopts aluminum alloy
  • Working Temperature: -50℃~+150℃
  • Product Standard: BS EN124:1994
  • Load Ratings: C250(25TON)
Product details

Function
Sewer, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color
Black Color

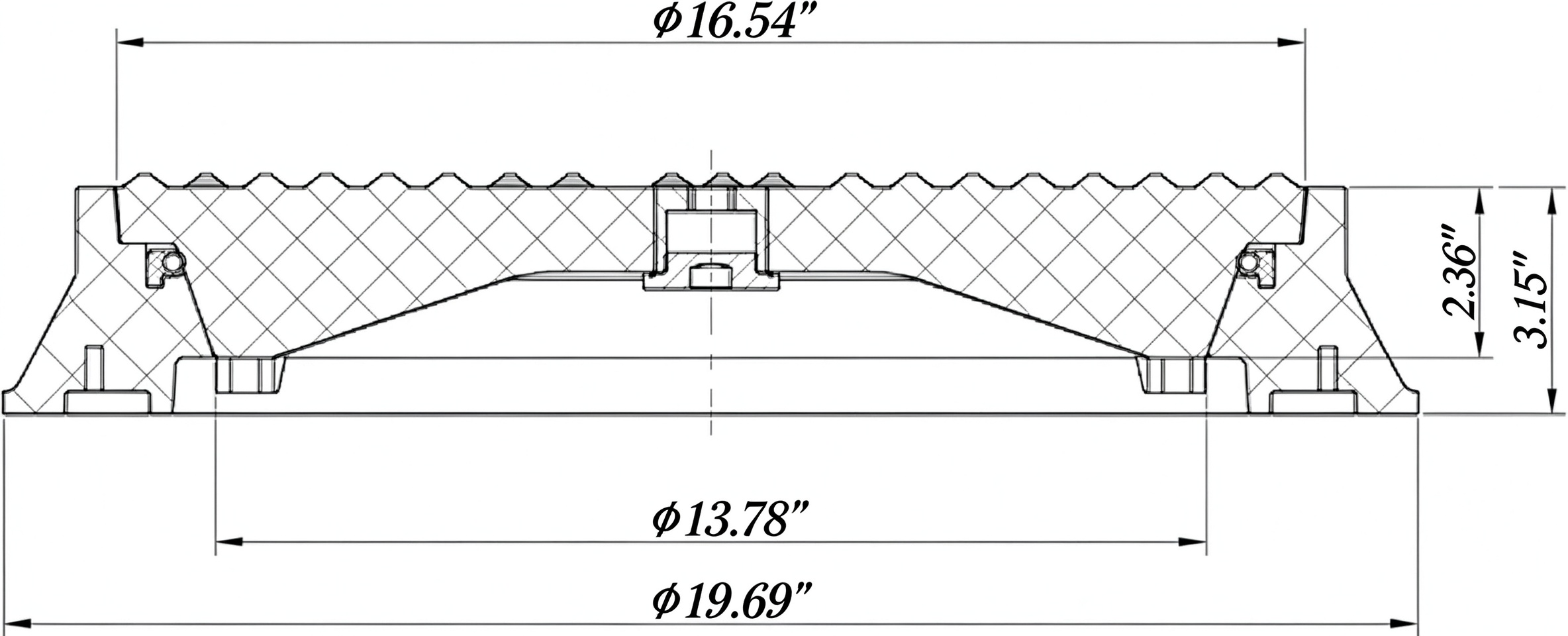

Product structure size

(mm)

Manhole cover DepthManhole cover DiaManhole Frame HeightLoad Ratings
6042080C250
Manhole Frame Outer DiaClear Open DiaInspection CocerWeight(Kg)
50035014

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram



Application


  • Residential areas
  • Streets and alleys
  • Areas with only light motor vehicles or small cars
  • On both sides of the road
  • Starting from the curb
  • Green belts
  • Sewer



Constantly strive for perfection

●Support Customization Of Products With Customer Logo



●Non-slip

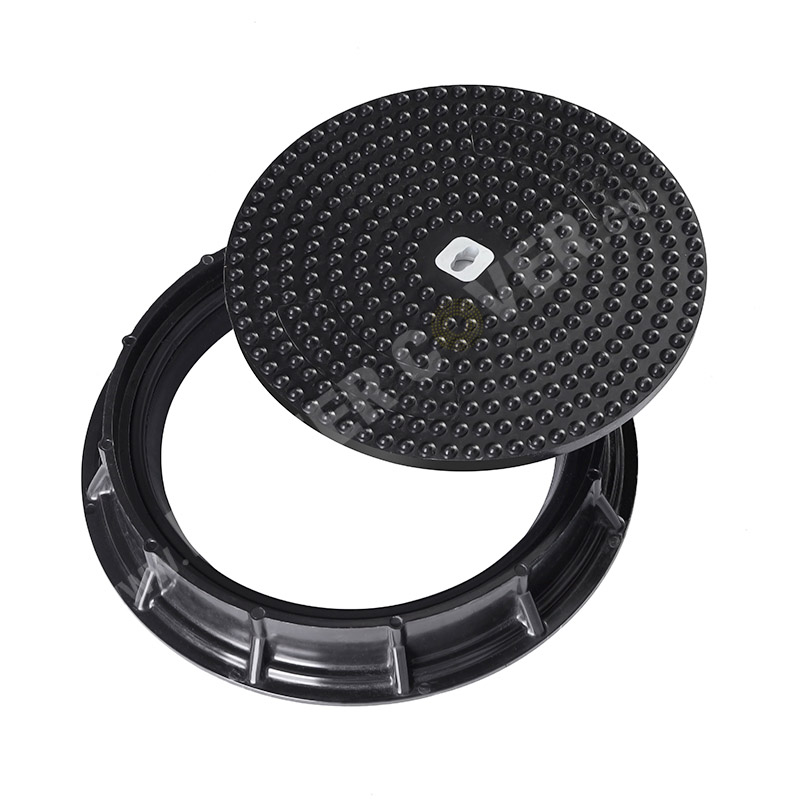

The upper surface of the manhole cover is designed with many round bumps with a height greater than 4mm, which increases the friction area on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.


●The aluminum sleeve of removable sealing handle adopts aluminum alloy


●Lockable


●Tool


Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume


Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size


Factory Overview


Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
