355X1080X120 C250 _Trench covers and frame、Gully Drain Grating Cover、 Gully grating、composite drainage manhole cover 、Drain covers、Sewer covers、Drainage System、Ditch grating

BETTER COVER trench covers and frames is suitable for a ditch with a span of 800-900mm.Clear open 355x890mm,Load Ratings range from C250, D400, and E600, which are suitable for the needs of different places such as power stations, docks, and airports,gas station.

Sample:
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

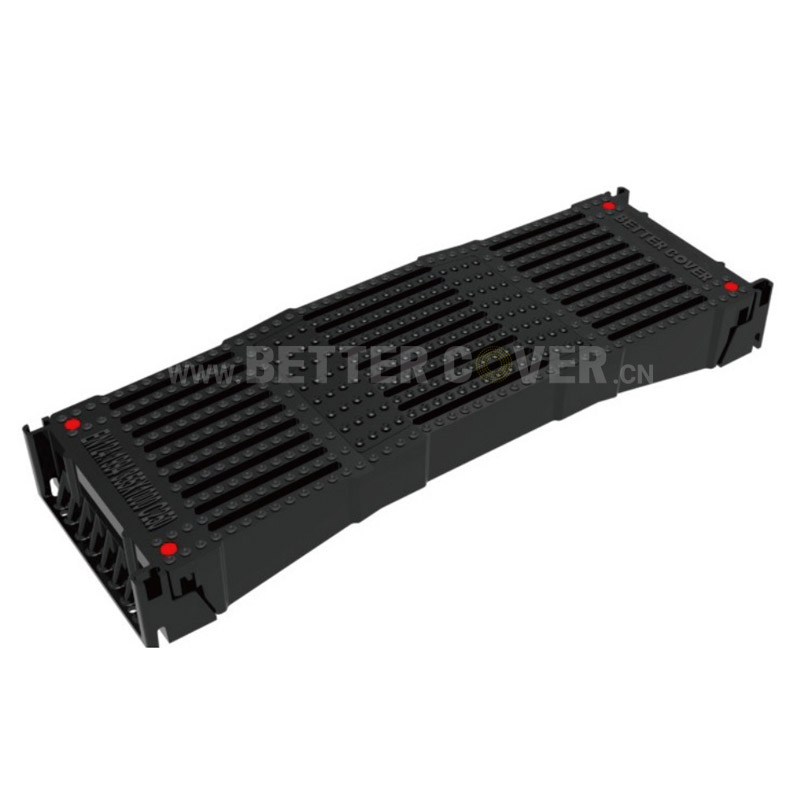

Product name: Gully Drain Grating Cover
Size:355x1080x120mm
Clear open: 355x890mm
Application: It is suitable for a ditch with a span of 800-900mm, which is suitable for the area where light motor trucks or small cars pass.
Function: Drainage, locking, anti -slip, anti -static, aging resistance, corrosion resistance and other functions.
Color: Black Color

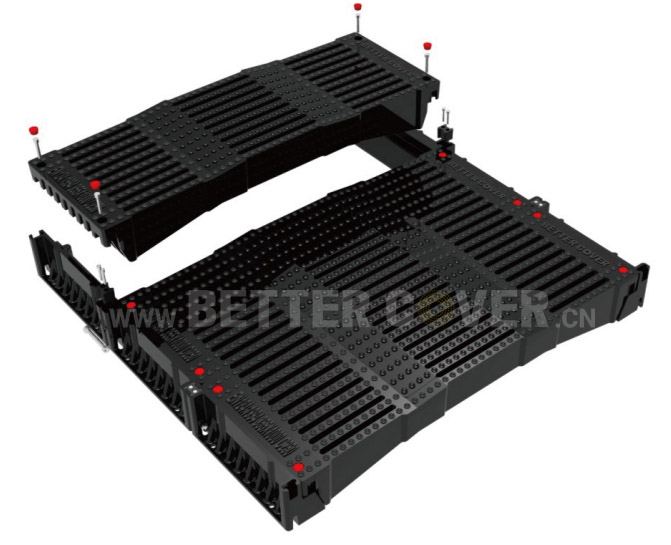

Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 50Kg
Product Material: The manhole cover and well seat are composed of SMC composite materials. The locking mechanism consists of four M8x45 stainless steel inner hexagonal gigon screws.
Working Temperature: -40℃～+100℃
Product Standard: BS EN124:2015
Load Ratings:C250(25TON)

Product details

Function	Drainage, anti-skid, anti-static, corrosion-resistant and aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	50	355X1000	120	C250
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	355X1080	355X890		50

Application

Gas station
Freight statio
Wharf
Heavy vehicle driving site drainage ditch
Sewer

BETTER COVER's independently developed SMC composite material has good impact resistance,
low water absorption, and super corrosion resistance (acid, alkali, salt, organic solvent, etc.),
Gully drain grating cover can be used at - 50 ~ 160℃,Service life exceeds 30 years.

Constantly strive for perfection

●Support Customization Of Products With Customer Logo

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
