∅600mm(23.7") C250_Double seal manhole cover

Lightweight high strength anti-theft double sealed composite manhole cover, Load Ratings C250 is recommended for use on secondary roads/slow traffic areas.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

Product name: SMC FRP Composite ∅600mm(23.7") C250 Lockable Waterproof Manhole Cover And Frame
Size: ∅750X60mm(29.6 " X 2.4 " )
Clear open: ∅600mm(23.7")
Application: Residential areas, streets and alleys, areas with only light motor vehicles or small cars, on both sides of the road, starting from the curb
Function: Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color
Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
Net Weight: 29Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:2015
Load Ratings:C250(25TON)

Product details

Function	Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

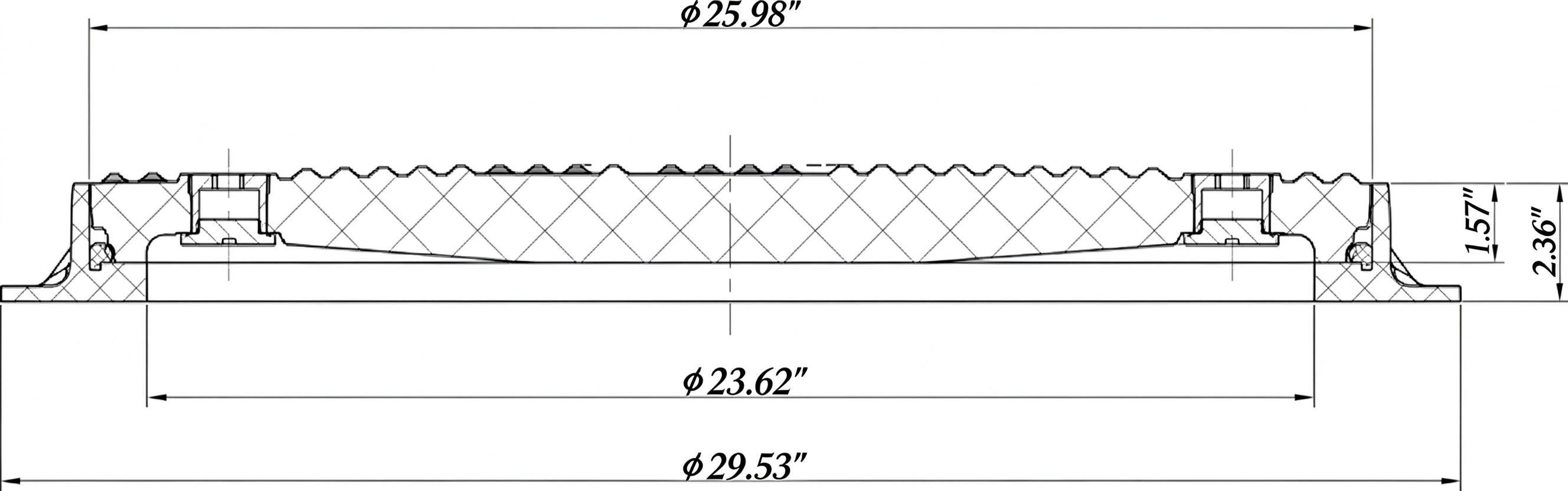

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	40	660	60	C250
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	750	600		29

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram

Application

Residential areas
Streets and alleys
Areas with only light motor vehicles or small cars
On both sides of the road
Starting from the curb

Constantly strive for perfection

●Support Customization Of Products With Customer Logo

●Screw locking mechanism

●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.

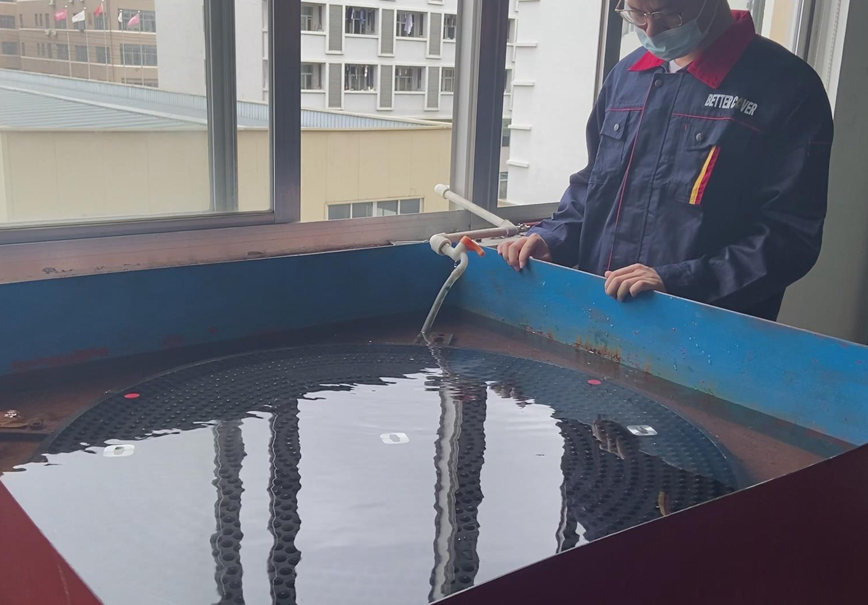

●Watertight seal

●Frame

●Tool

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
