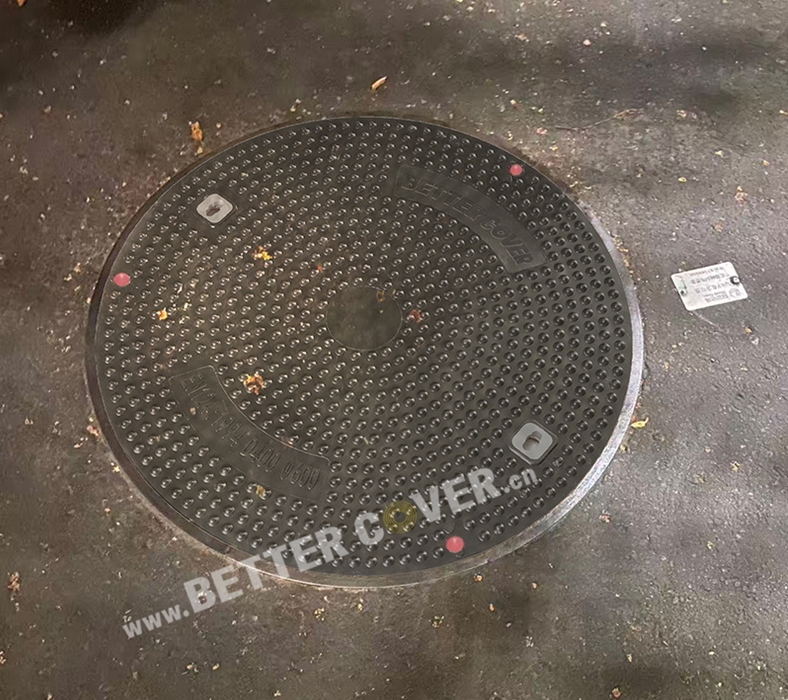

∅600mm(23.7") D400_Sealed composite manhole covers and frames

The manhole cover is made of SMC composite material, has a sealed structure, is waterproof, and has a locking device. This product is corrosion-resistant and anti-static. The material has no recycling value, no risk of theft, and has a service life of more than 30 years. The weight of the product is 1/4 of the ductile iron manhole cover of the same grade. Installation and maintenance can save labor costs, improve work efficiency, and reduce the risk of work-related injuries. Its excellent sealing performance and load ratings D400 (40TON) are very suitable for use in the sewage field and telecommunications field.

  • Sample: Set / 1 Set (Min. Order)
  • Production time:
    Quantity (set)1-100>100
    Day5negotiated
  • Customized: Support customization
  • Transport: Support sea transportation
Product description

summary

Quick details

  • Product name: SMC FRP Composite ∅600mm(23.7") D400 Lockable Sealed Manhole Cover And Frame
  • Size:∅750X60mm(29.6"X2.4")
  • Clear open: ∅600mm(23.7")
  • Function: Sealed structure, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
  • Color: Black Color
  • Product Structure: Manhole cover and frame, drainage handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
  • Net Weight: 35Kg
  • Product Material: The manhole cover and frame are made of SMC FRP composite material, The aluminum sleeve of removable drainage handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
  • Working Temperature: -50℃~+150℃
  • Product Standard: BS EN124:1994
  • Load Ratings: D400(40TON)
Product details

Function
Sealed structure, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color
Black Color

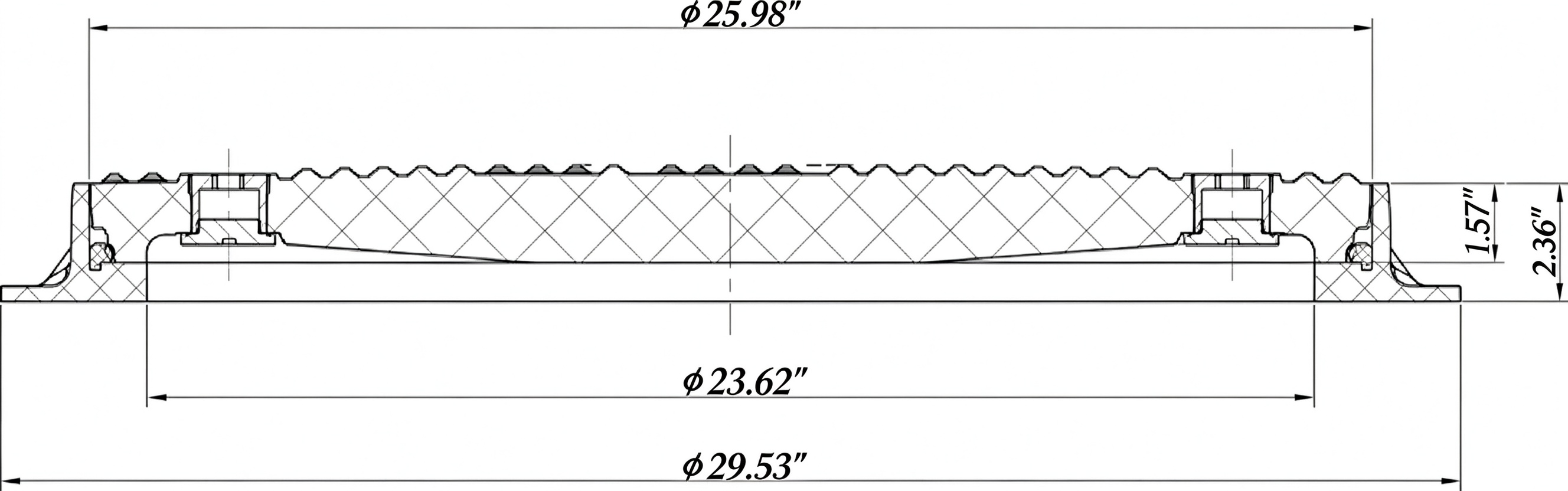

Product structure size

(mm)

Manhole cover DepthManhole cover DiaManhole Frame HeightLoad Ratings
4066060D400
Manhole Frame Outer DiaClear Open DiaInspection CocerWeight(Kg)
75060035

Application


  • Freight station
  • Wharf
  • Gas stations
  • Other heavy roads and sites frequently used
  • Sewer



● Strong corrosion resistance and anti-static


Manhole covers to have higher corrosion resistance and anti-static.
The high-performance resin, glass fiber and special production process formula used in composite materials ,chemical resistance (acid, alkali, salt, organic solvent, etc.),which has better corrosion resistance and can better resist chemicals. corrosion and reduce the risk of accidents.







Strong Sealing Performance

The oblique cut design of the sealing ring has a large contact surface, increasing the sealing strength.
High fit of manhole cover and seat, stable structure and tiny deformation.




BETTER COVER’s independently developed “T-SMC composite material”

T-SMC Material advantages
T: Stands for extremely high glass fiber content, which means it`s more than 45%,Ensure glass fiber is fully soaked in resin through special process



T-SMC Material production line
To strictly control the ratio of raw materials, digital metering is been adopted,which can achieve high accuracy, i.e.within 50g.


●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.


Constantly strive for perfection

●Support Customization Of Products With Customer Logo



●Screw locking mechanism


●Non-slip

The upper surface of the manhole cover is designed with many round bumps with a height greater than 4mm, which increases the friction area on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.


●The aluminum sleeve of removable sealing handle adopts aluminum alloy


●Frame


●Tool


Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume


Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size


Factory Overview


Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

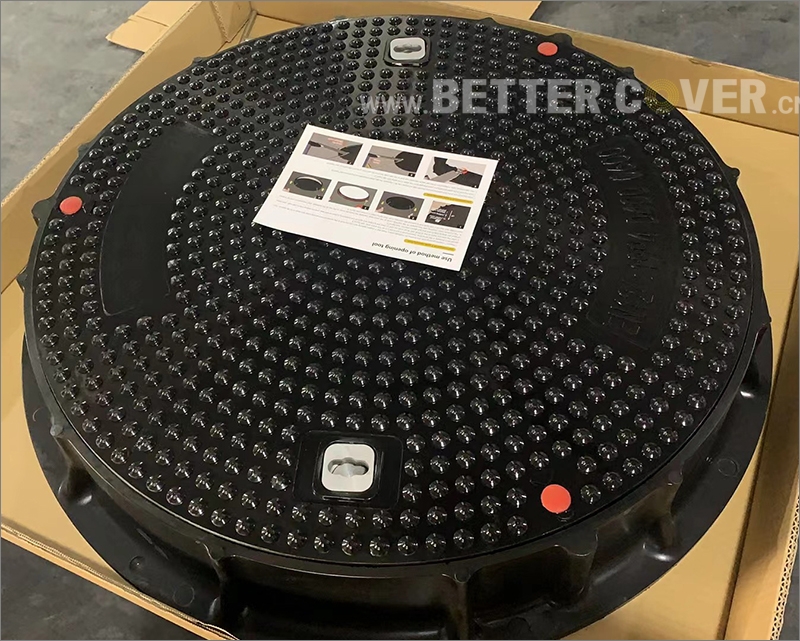

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
