∅650mm B125_Double Seal Road And Sidewalk Manhole Covers

BETTERCOVER manhole covers can be applied to pedestrian streets, light car roads, municipal roads, green belts, sidewalks, communities. It can be called 125kn pressure, 12.5 tons weight. Optional locking system. Optional cover anti-theft spline. High quality guard against theft double seal inspection cover from china factory production.

  • Sample: Set / 1 Set (Min. Order)
  • Production time:
    Quantity (set)1-100>100
    Day5negotiated
  • Customized: Support customization
  • Transport: Support sea transportation
Product description

summary

Quick details

  • Product name: SMC FRP Composite ∅650mm B125 Lockable Waterproof Manhole Cover And Frame
  • Size: ∅800X60mm
  • Clear open: ∅650mm
  • Application: Sidewalks, non motorized lanes, car parking lots and underground parking lots
  • Function: Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
  • Color: Black Color
  • Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M8x40 hexagon socket cylinder head lockable bolts
  • Net Weight: 26Kg
  • Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M8x40 hexagon lockable bolt adopts 304 stainless steel
  • Working Temperature: -50℃~+150℃
  • Product Standard: BS EN124:1994
  • Load Ratings:B125(12.5TON)


Product details


Function
Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color
Black Color

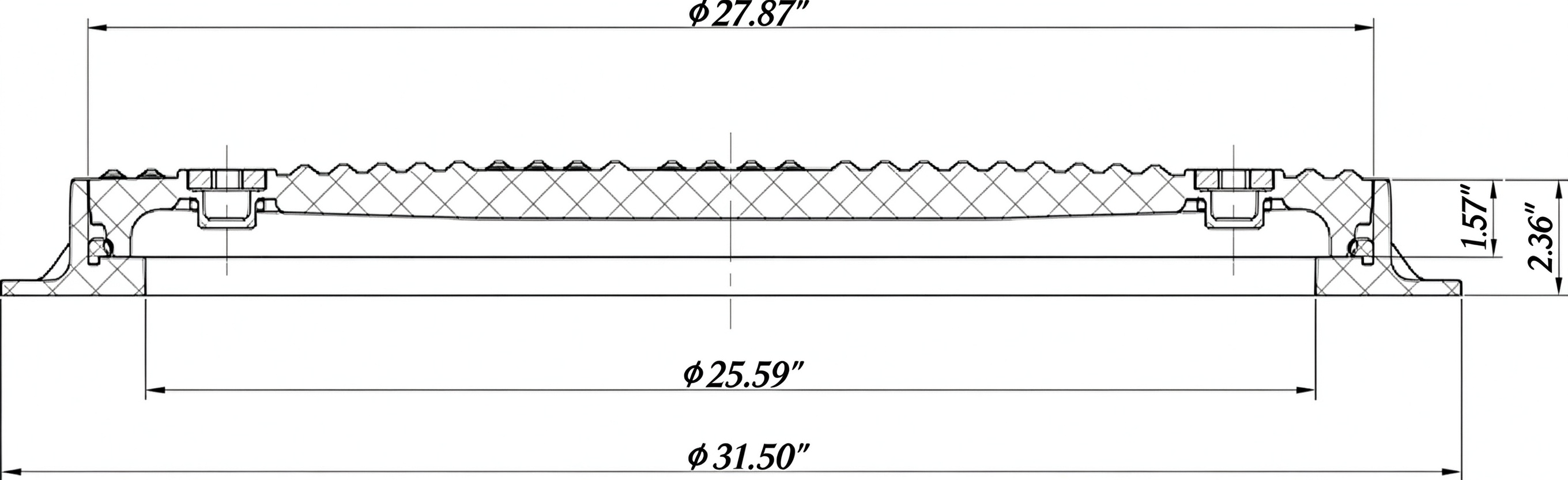

Product structure size

(mm)

Manhole cover DepthManhole cover DiaManhole Frame HeightLoad Ratings
4070860B125
Manhole Frame Outer DiaClear Open DiaInspection CocerWeight(Kg)
80060026

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram


Application


  • Sidewalks
  • Non motorized lanes
  • Car parking lots
  • Underground parking lots



Constantly strive for perfection

●Support Customization Of Products With Customer Logo



●Screw locking mechanism



●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.


●The aluminum sleeve of removable sealing handle adopts aluminum alloy


●Watertight seal


●Frame


●Tool


Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume


Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size


Factory Overview


Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
