∅900mm B125_Double Seal Prevent Odor Manhole Cover

B125 composite manhole cover can be applied to pedestrian streets and light car roads. This access cover resists odors, provides resistance against drainage back pressure, is airtight and virtually watertight due to a double seal, control the unpleasant smells that rise from sewer vents, grease traps, and manholes, prevents the outflow of odors and floods.

Sample: Set / 1 Set (Min. Order)
Production time:
Quantity (set) 1-100 >100
Day 5 negotiated
Customized: Support customization
Transport: Support sea transportation

Select and buy

CATEGORY

Product description

summary

Quick details

Product name: SMC FRP Composite ∅900mm B125 Lockable Double seal Waterproof Manhole Cover And Frame
Size: ∅1080X100mm
Clear open: ∅900mm
Application: Sidewalks, non motorized lanes, car parking lots and underground parking lots
Function: Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Color: Black Color
Product Structure: Manhole cover and frame, removable side sealing structure, removable sealing handle aluminum sleeve and 3 M10x40 hexagon socket cylinder head lockable bolts
Net Weight: 56Kg
Product Material: The manhole cover and frame are made of SMC FRP composite material, the removable side sealing structure adopts corrosion-resistant EPDM, the aluminum sleeve of removable sealing handle adopts aluminum alloy, and the M10x40 hexagon lockable bolt adopts 304 stainless steel
Working Temperature: -50℃～+150℃
Product Standard: BS EN124:1994
Load Ratings:B125(12.5TON)

Product details

Function	Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color	Black Color

Product structure size (mm)	Manhole cover Depth	Manhole cover Dia	Manhole Frame Height	Load Ratings
	50	980	100	B125
	Manhole Frame Outer Dia	Clear Open Dia	Inspection Cocer	Weight(Kg)
	1080	900		56

If the product is used in an unsealed environment for drainage or sewage ,the handle hole of the manhole cover is a drainage handle aluminum sleeve ,and removable rubber seal is not installed on the manhole Fram

Application

Sidewalks
Non motorized lanes
Car parking lots
Underground parking lots

Constantly strive for perfection

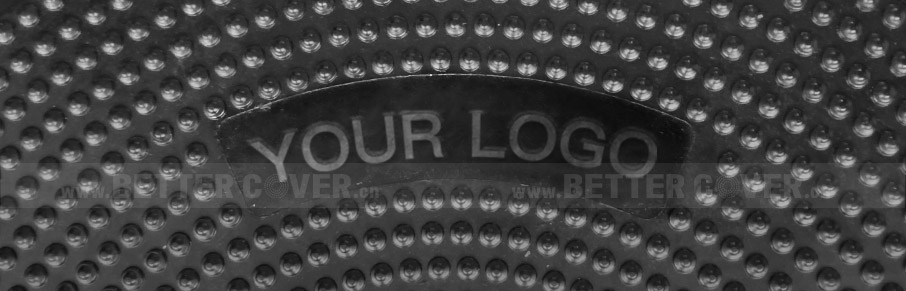

●Support Customization Of Products With Customer Logo

●Screw locking mechanism

●Waterproof and non-slip

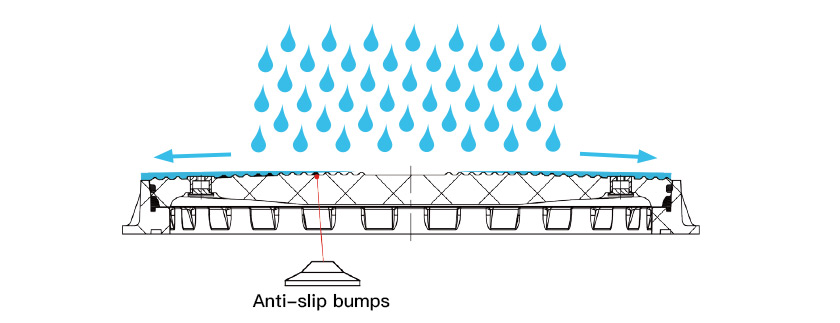

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.

●The aluminum sleeve of removable sealing handle adopts aluminum alloy

●Watertight seal

●Frame

●Tool

Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume

Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size

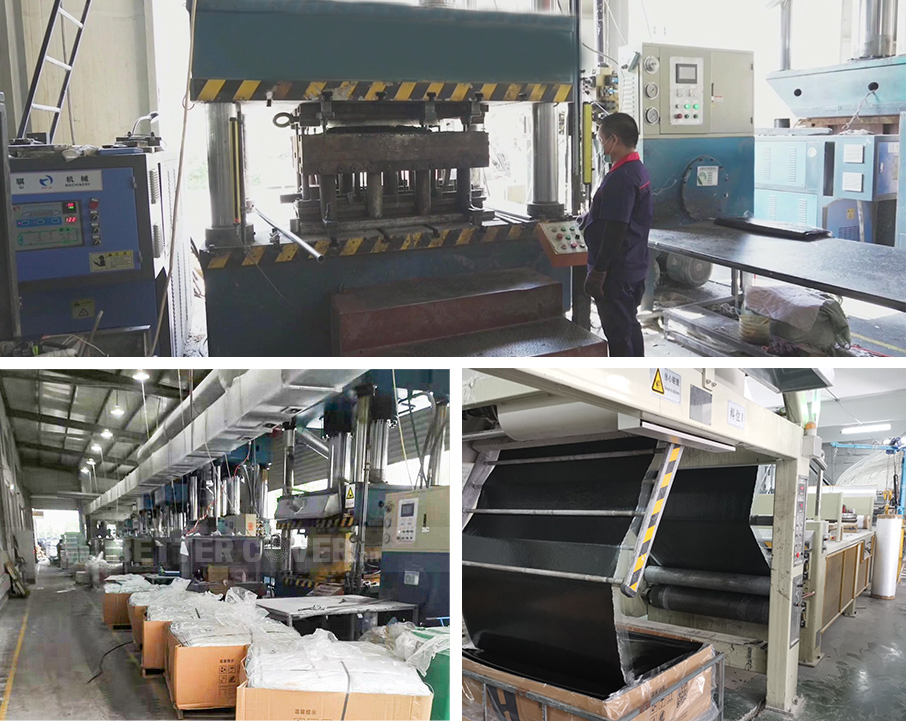

Factory Overview

Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
