∅900mm(36") C250

∅900mm(36") C250_Inspection Chambe Manhole Cover & Frames 、900mmD400 manhole cover with inspection hole

The manhole cover is convenient for maintenance and repair, and it is convenient for maintenance personnel to reduce the workload during inspection. Just open the inspection cover to inspect the inside of the well without opening the integral well cover. With locking safety and anti-theft function, protruding point anti-skid surface, double sealing structure, it is the best choice for telecommunications and gas stations.

  • Sample: Set / 1 Set (Min. Order)
  • Production time:
    Quantity (set)1-100>100
    Day5negotiated
  • Customized: Support customization
  • Transport: Support sea transportation
Select and buy
Product description

summary

Quick details

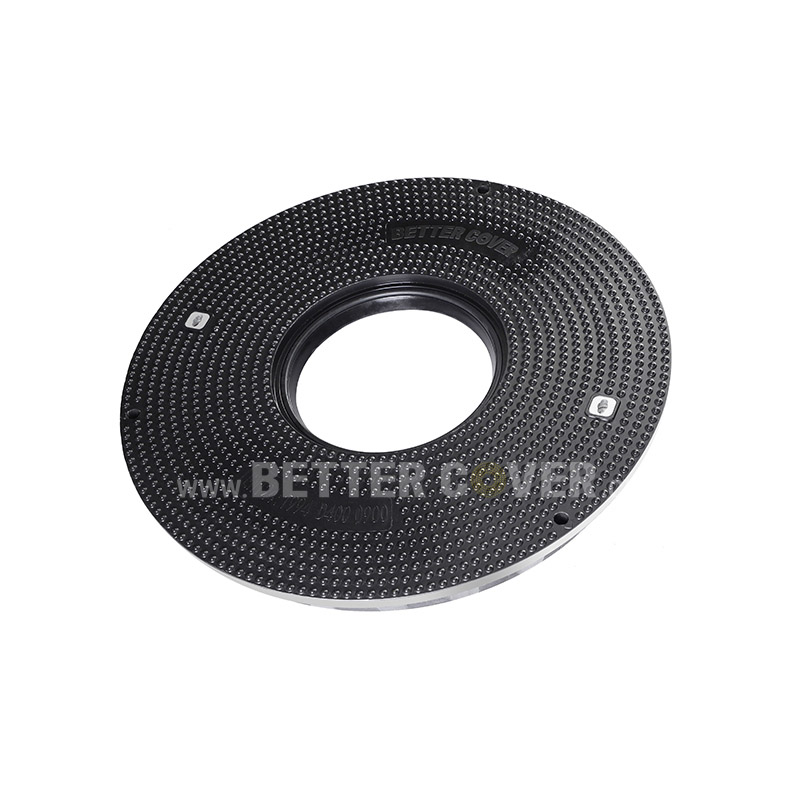

  • Product name: SMC FRP Composite ∅900mm(36") C250 Lockable Waterproof Inspection Manhole Cover And Frame
  • Size: ∅1080X100mm(42.6"X4")
  • Clear open: ∅900mm(36")
  • Application: the manhole can be observed without opening the manhole cover, gas stations,residential areas,streets and alleys, areas with only light motor vehicles or small cars, both sides of the road, within 0.5m from the kerb
  • Function: There is a locking sealing inspection sub cover with a net opening of ∅ 350mm(13.8") in the middle of the manhole cover, which is waterproof, lockable, anti-skid, anti-static, corrosion-resistant and aging resistant
  • Color: Black Color
  • Product Structure: Manhole cover, well seat and locking seal inspection cover with clear opening ∅ 350mm, removable side sealing structure and removable sealing handle aluminum sleeve, and 3 m10x40 hexagon socket cylindrical head lockable bolts
  • Net Weight: 76Kg
  • Product Material: Manhole cover, frame and inspection cover are made of SMC FRP composite material. The removable side sealing structure adopts corrosion-resistant EPDM rubber, the aluminum sleeve of removable sealing handle adopts aluminum alloy, three m10x40 hexagon socket head locking screws adopt 304 stainless steel, and the locking mechanism of inspection cover adopts aluminum alloy and 304 stainless steel
  • Working Temperature: -50℃～+150℃
  • Product Standard: BS EN124:1994
  • Load Ratings: C250(25TON)
Product details



Function
Waterpioof, Lockable, Anti Slip, Anti Static, Corrosion Resistantand aging resistant
Product Color
Black Color



Product structure size

(mm)

Manhole cover DepthManhole cover DiaManhole Frame HeightLoad Ratings
50980100C250
Manhole Frame Outer DiaClear Open DiaInspection CocerWeight(Kg)
1080900 35076


Application


  • Gas stations
  • Residential areas
  • Streets and alleys
  • Areas with only light motor vehicles or small cars
  • On both sides of the road
  • Starting from the curb




Constantly strive for perfection

●Support Customization Of Products With Customer Logo




●Inspection sub cover

There is a locking sealing inspection sub cover with a net opening of ∅ 350mm in the middle of the manhole cover, which is waterproof



●Screw locking mechanism



●Waterproof and non-slip

Because the upper surface of the manhole cover is a raised bridge structure, it can effectively prevent the accumulation of rainwater on the surface of the manhole cover. The anti-skid ability of the surface of the manhole cover is greatly improved.


●Watertight seal

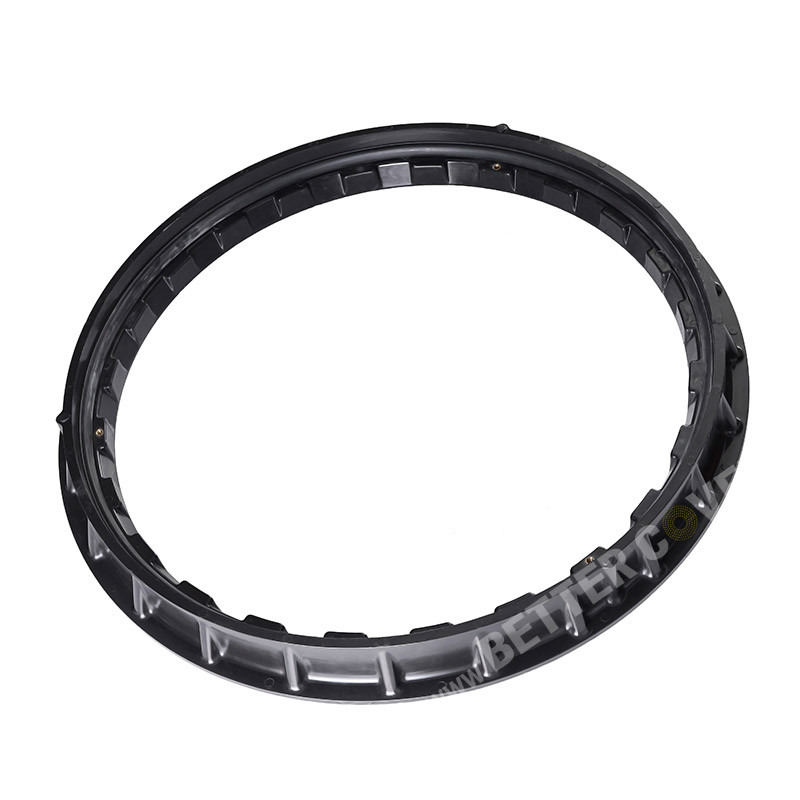

●Frame


●Tool


Light weight

The weight of composite manhole cover is 1 / 4 of that of traditional manhole cover with the same volume


Excellent bridge structure

We have mature OEM and ODM experience

Customizable logo, cover pattern, color and size


Factory Overview


Applications

Products comply with EN124-5 2015 and AS3996 2006 standards, and are suitable for applications in -50°-150° ambient temperature, as well as in lawns, indoors, sidewalks, non-motorized lanes,car parking lots 、Gas stations, freight stations, docks and other heavy roads and sites that are frequently used Meet all kinds of products with A15, B125,C250, D400, E600 load-bearing grades.

Packing and shipping

We can provide standard carton, wooden box, iron pallet and other packaging, or according to your requirements.
